Venn Co.

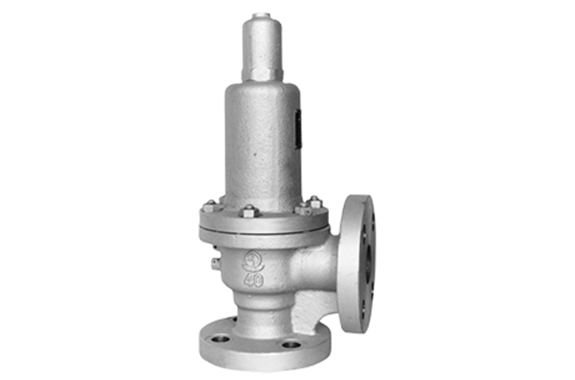

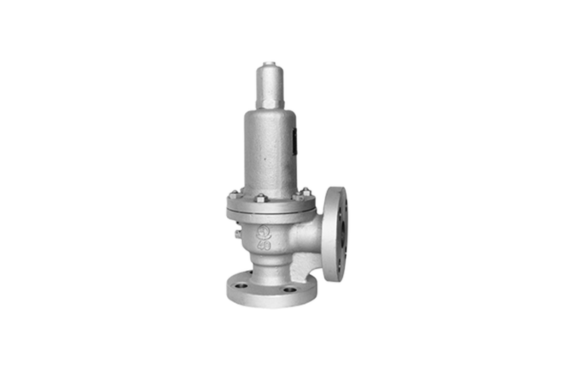

Venn SL-46 Type Safety Valve (Lift Type)
Manufacturer: Venn Co., Ltd.
Model: SL-46
Specifications
| Product code | SL46-M |
|---|---|
| format | Lifting ceremony |
| Cap format | No lever |
| Nominal diameter | 15-100 (1/2-4) |
| Applicable fluid | Steam / air / gas / liquid |
| Set pressure range | 0.035-2.0MPa |
| Fluid temperature | 0-220 ℃ |
| End connection | JIS 10, 16, 20K FF flange |
| Mounting posture | Upright mounting |
| Material body | FCD |
| Material Valve body | SUS or SCS |
| Material Valve seat | SUS or SCS |
