Venn Co.

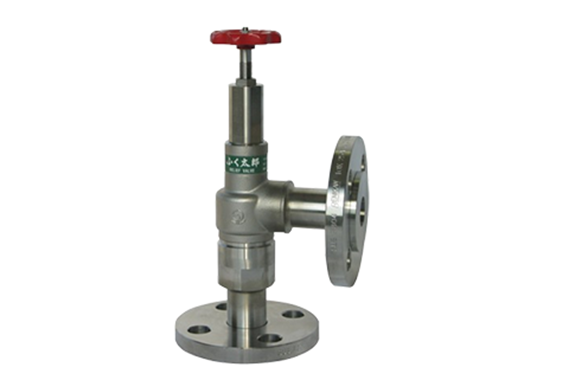

Venn Venn SL-40EFA type relief valve (for pump relief)
Manufacturer: Venn Co., Ltd.
Model: SL-40EFA
Features
- The valve body has a dashpot structure, which suppresses the sudden movement of the valve body due to pulsating pressure and fluctuating pressure.
- The increased pressure due to the load fluctuation of the pump is discharged, and the discharge pressure of the pump is kept constant.
- The SL-40EFA type can easily adjust the operating pressure by operating the handle.
Specifications
| Product code | SL40EFA-D |
|---|---|
| format | Relief valve |
| Adjustment method | Handle type |
| Nameplate color | Green |
| Cap format | With pressure adjustment handle |
| Nominal diameter | 15-50 (1/2-2) |
| Applicable fluid | Water / oil / liquid |
| Set pressure range | 0.035-1.0MPa |
| Fluid temperature | Manufactured up to 5-80 ° C (up to 150 ° C). |
| End connection | JIS 10K loose flange |
| Mounting posture | Upright mounting |
| Material Valve body | SUS |
| Material Valve seat | SUS |
| Material Spring case | SCS |
