Venn Co.

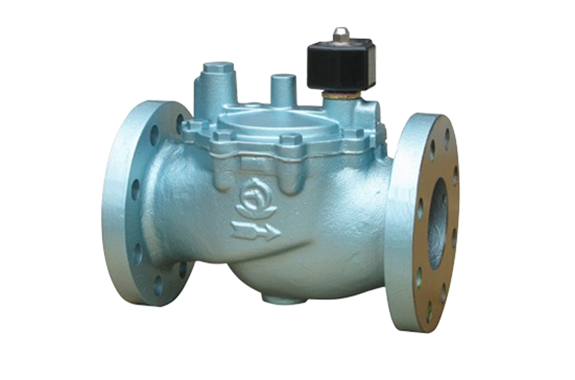

Venn VF-13 Solenoid Valve (for Liquids and Gases)
Manufacturer: Venn Co., Ltd.
Model: VF-13
Features
- The drive section uses a diaphragm design.
- In addition, the upper cover, including the pilot valve, makes of bronze.
- A strainer integrates into the flow path, which reduces the impact of debris and rust.
- Moreover, it equips with a water hammer mitigation mechanism
- It is lightweight and compact, and it saves energy due to low power consumption.
- Furthermore, the VF-14 and VF-14C models are made entirely of bronze, eliminating sources of rust.
Specification
| Product Symbol | VF13-B |
|---|---|
| Types | diaphragm |
| Activate | Power on |
| Nominal diameter | 80・100（3・4） |
| Applicable fluids | Water & Air・Oil |
| Fluid temperature | 5～60℃ |
| Fluid viscosity | 50cSt or less |
| Application pressure | 0.03～1.0MPa |
| Minimum differential pressure before and after the valve | 0.03MPa |
