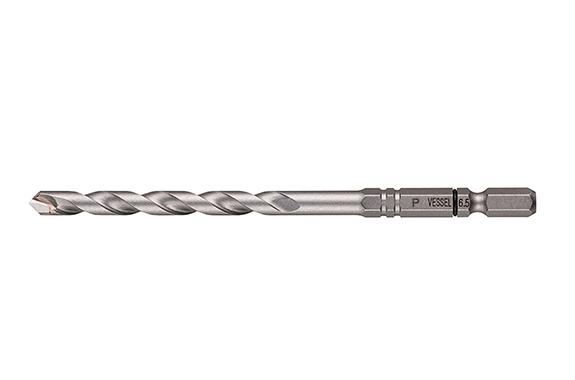

Vessel No.APD “Cushion” Drill Bit for Porcelain Tiles
Made in Japan
Manufacturer : Vessel
Model :No.APD
Outstanding durability and high speed drilling.
* Slipless quick drilling.
* Special carbide chip for porcelain tiles is attached at the bit tip with heat-resistant solder.
* Cushion ring prevents backlash, enabling to drill at the right point.
Product Specifications
| Model | Class | Shank O/D mm | Drill groove LG mm | Overall Length mm | Weight g | Inner C/T | Outer C/T | EDP No. |
| APD-6.5(6.5 x 122) | DRILL | 6.5 | 65 | 122 | 24 | 10 | 200 | 464015 |
| APD-6.4(6.4 x 122) | DRILL | 6.4 | 65 | 122 | 24 | 10 | 200 | 464014 |
| APD-6.0(6.0 x 122) | DRILL | 6 | 65 | 122 | 22 | 10 | 200 | 464013 |
| APD-5.5(5.5 x 122) | DRILL | 5.5 | 65 | 122 | 20 | 10 | 200 | 464012 |
| APD-5.3(5.3 x 122) | DRILL | 5.3 | 65 | 122 | 20 | 10 | 200 | 464011 |
| APD-4.5(4.5 x 107) | DRILL | 4.5 | 50 | 107 | 16 | 10 | 200 | 464008 |
| APD-4.8(4.8 x 107) | DRILL | 4.8 | 50 | 107 | 16 | 10 | 200 | 464009 |
| APD-5.0(5.0 x 107) | DRILL | 5 | 50 | 107 | 17 | 10 | 200 | 464010 |
| APD-4.3(4.3 x 107) | DRILL | 4.3 | 50 | 107 | 15 | 10 | 200 | 464007 |
| APD-4.0(4.0 x 107) | DRILL | 4 | 50 | 107 | 15 | 10 | 200 | 464006 |
| APD-3.8(3.8 x 107) | DRILL | 3.8 | 50 | 107 | 15 | 10 | 200 | 464005 |
| APD-3.5(3.5 x 102) | DRILL | 3.5 | 45 | 102 | 14 | 10 | 200 | 464004 |
| APD-3.4(3.4 x 102) | DRILL | 3.4 | 45 | 102 | 14 | 10 | 200 | 464003 |
| APD-3.2(3.2 x 102) | DRILL | 3.2 | 45 | 102 | 14 | 10 | 200 | 464002 |
| APD-3.0(3.0 x 102) | DRILL | 3 | 45 | 102 | 14 | 10 | 200 | 464001 |
