Japan, Vessel

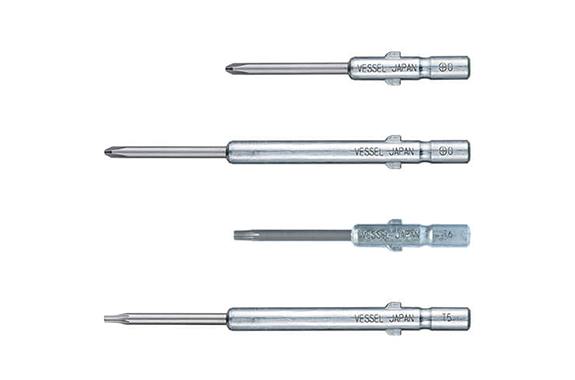

Vessel No.DS73 Shockless Bit
Made in Japan
Manufacturer : Vessel
Model : No.DS73
Bits with exquisite precision
* Combination of special alloy steel and zinc die cast; Stable fastening torque and improved durability.
* Bit tip high-precision-machined to thread standards.
Product Specifications
| Model | Class | Tip | Shank O/D mm |
Tip O/Dmm | Overall Length mm |
Weightg | Inner C/T | Outer C/T | EDP No. |
| DS73(Ph No.00 x 1.5 x 40) | PH | Ph No.00 | 1.5 | _ | 40 | 2 | 10 | 100 | 483801 |
| DS73(Ph No.00 x 1.5 x 60) | PH | Ph No.00 | 1.5 | _ | 60 | 4 | 10 | 100 | 483802 |
| DS73(Ph No.0 x 1.5 x 40) | PH | Ph No.0 | 1.5 | _ | 40 | 2 | 10 | 100 | 483809 |
| DS73(Ph No.0 x 1.5 x 60) | PH | Ph No.0 | 1.5 | _ | 60 | 4 | 10 | 100 | 483810 |
| DS73(Ph No.0 x 2 x 40) | PH | Ph No.0 | 2 | _ | 40 | 2 | 10 | 100 | 483813 |
| DS73(Ph No.0 x 1.7 x 60) | PH | Ph No.0 | 1.7 | _ | 60 | 4 | 10 | 100 | 483812 |
| DS73(Ph No.0 x 1.7 x 40) | PH | Ph No.0 | 1.7 | _ | 40 | 2 | 10 | 100 | 483811 |
| DS73(T5 x 2 x 60) | TX | T5 | 2 | 1.37 | 60 | 4 | 10 | 100 | 483902 |
| DS73(T5 x 2 x 40) | TX | T5 | 2 | 1.37 | 40 | 2 | 10 | 100 | 483901 |
| DS73(T6 x 2 x 40) | TX | T6 | 2 | 1.65 | 40 | 2 | 10 | 100 | 483903 |
| DS73(T6 x 2 x 60) | TX | T6 | 2 | 1.65 | 60 | 4 | 10 | 100 | 483904 |
