Vessel

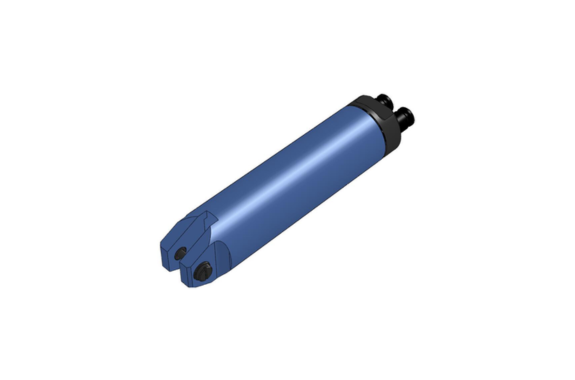

Vessel No.GT-HWR10 Double Action Air Scissors (Round Type Without Lever)
Manufacturer : Vessel
Model : No.GT-HWR10
Cutting items desired to be cut without fail
* Blade opening and closing is driven by air piston.
* Having no spring mechanism in the main unit facilitates maintenance.
* Optional blade No.HW10J
Product Specifications
| Model | Capacity O/D (mm) Copper | Capacity O/D (mm) Steel | Air consumption (cm3 /str.) | Air pressure (MPa) | Applired pressure (N) | Overall Length (mm) | Weight (g) | EDP No. |
|---|---|---|---|---|---|---|---|---|
| GT-HWR10 | 1.8 | 1.2 | 116 | 0.4 to 0.5 | 588 | 146 | 295 | 360714 |
