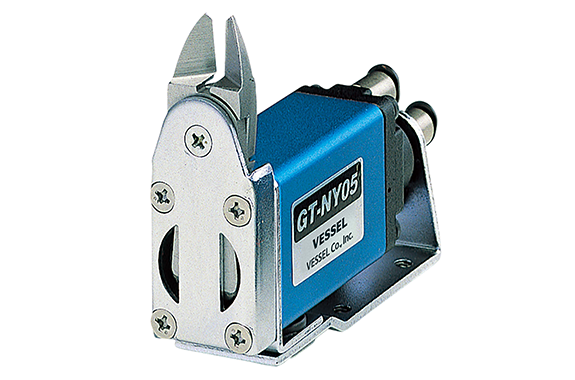

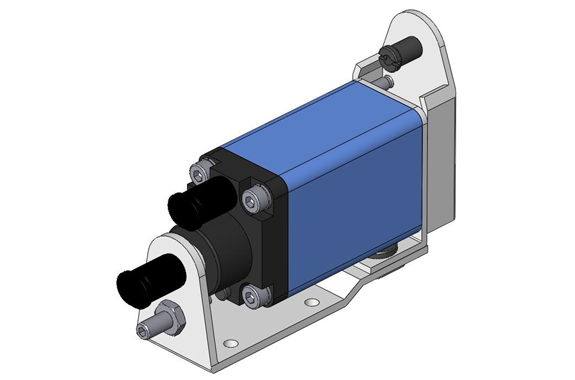

Vessel No.GT-NY05-4 Sliding Air Nipper Horizontal-Type
Manufacturer : Vessel
Model : No.GT-NY05-4
High precision gate cutting, not producing cutting residue
* The horizontal slide enables space to be used effectively.
* The low profile of the main unit allows molded objects to be removed without obstructing the operations of the chuck plate.
Product Specifications
| Model | Capacity O/D (mm) Soft Plastic | Capacity O/D (mm) Hard Plastic | Capacity O/D (mm) Copper | Capacity O/D (mm) Steel | Slide range (mm) | Air consumption (cm3 /str.) | Air pressure (MPa) | Hose I/D (mm) | Overall Length (mm) | Weight (g) | EDP No. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GT-NY05-4 | 3 | 2 | 1.6 | 1 | 0 to 3 | 48 | 0.4 to 0.5 | I/D 2.5 x O/D 4 | 75.9 | 155 | 360648 |
