Vessel

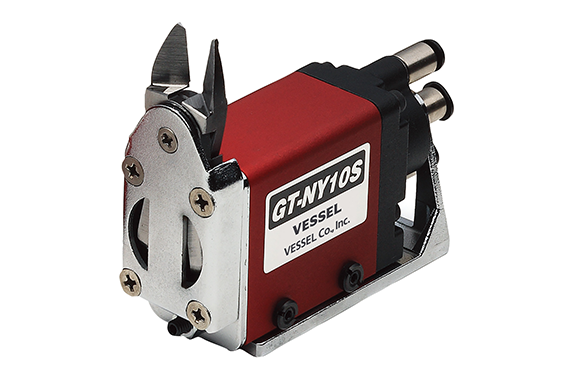

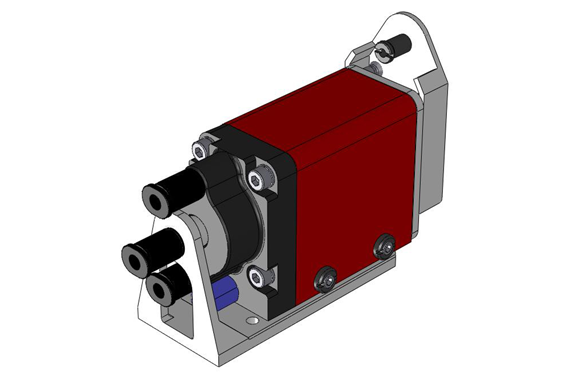

Vessel No.GT-NY10S Double Action Sliding Air Nipper
Manufacturer : Vessel
Model : No.GT-NY10S
High precision gate cutting, not producing cutting residue
* The springless slide construction of the main unit ensures smooth movement.
* V-groove slide base has been employed for high precision positioning.
Product Specifications
| Model | Capacity O/D (mm) Soft Plastic | Capacity O/D (mm) Hard Plastic | Slide range (mm) | Air consumption (cm3/str.) | Air pressure (MPa) | Hose I/D (mm) | Overall Length (mm) | Weight (g) | EDP No. |
|---|---|---|---|---|---|---|---|---|---|
| GT-NY10S | 3.5 | 2.3 | 0 to 3.5 | 68 | 0.4 to 0.5 | I/D 2.5 x O/D 4 | 84.5 | 300 | 360731 |
