Watanabe

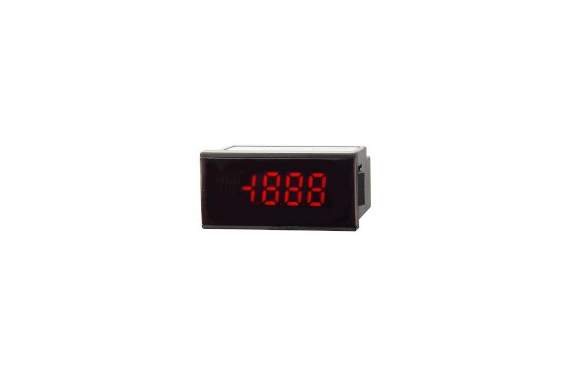

Watanabe A2000 Series A21-0 Digital Panel Meter For DC Voltage And Current – DC Meter
Manufacturer: Watanabe Electric Industry Co. Ltd
Model: A2000 Series A21□0
24mm x 48mm compact DIN size DC voltage
Features
- The measurement range can be changed by switching the input range.
- There is a high brightness display option that is easy to see even in bright places.
Specifications
| input signal | DC voltage/DC current |
|---|---|
| output signal | none |
| power supply | Non-isolated power supply: DC5V±5% * Voltage input only Isolated power supply: DC5V (-5%) to 24V (+10%) |
| tolerance | ±0.1 to 0.2%fs |
| Withstand voltage | DC500V (isolated type only) |
| mass (weight) | about 40g |
| Compliant standard | EN61326-1 (not applicable for input code 14) EN IEC 63000 |
| External dimensions (HWD) | 24×48×40mm |
| Operating temperature and humidity | 0 to +50°C 35 to 85% RH |
| Panel dimensions (HW) | 24×48mm |
| Number of display digits | 3+1/2 digits (character height 10mm) |
Model Code
