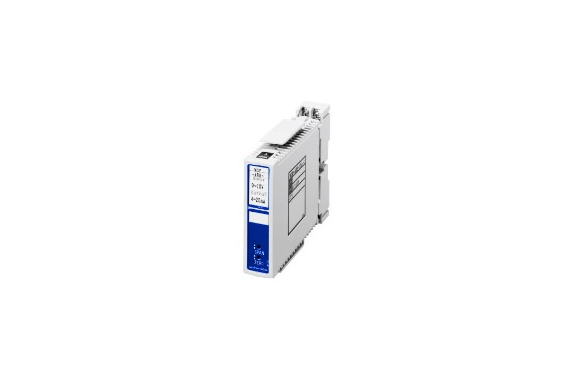

Watanabe WGP-ARD Average Value Calculator (Non-Isolated) – Signal Converter
Manufacturer: Watanabe Electric Industry Co. Ltd
Model: WGP-ARD
A converter that outputs a DC signal proportional to the average value of two input signals
Features
- Thin plug-in type for easy maintenance
- Wide range of zero/span adjustment of ±10%fs
Specifications
| input signal | DC voltage/DC current |
|---|---|
| output signal | DC voltage/DC current |
| power supply | AC100-120V AC200-240V DC24V DC48V DC110V |
| tolerance | ±0.1%fs |
| Response speed (0→90%) | 25ms |
| Zero/span adjustment | ±10%fs |
| Withstand voltage | AC2000V |
| mass (weight) | about 200g |
| External dimensions (HWD) | 105×25.6×136.5mm |
| Operating temperature and humidity | -5 to +55°C 90% RH or less |
