Watanabe

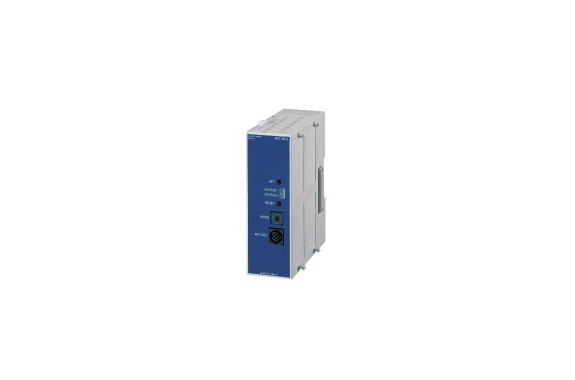

Watanabe WJF-STO RS-232C Unit – Remote I/O
Manufacturer: Watanabe Electric Industry Co. Ltd
Model: WJF-STO
Joint module dedicated functional unit that communicates with T&D T&D Co., Ltd.
Connects to the T&D master unit and collects accumulated data from the slave unit.
Specifications
| input signal | RS-232C signal x 1 point (dedicated cable) Connect with T&D Co., Ltd. T&D Co., Ltd. |
|---|---|
| output signal | none |
| communication | LAN LONWORKS communication (TP/FT-10) Real link communication (TP/XF-78) *Depends on the connected main unit |
| power supply | Supplied from main unit |
| mass (weight) | about 150g |
| External dimensions (HWD) | 126×46.6×100mm |
| Operating temperature and humidity | -5~+55℃ 90%RH or less |
