Watanabe

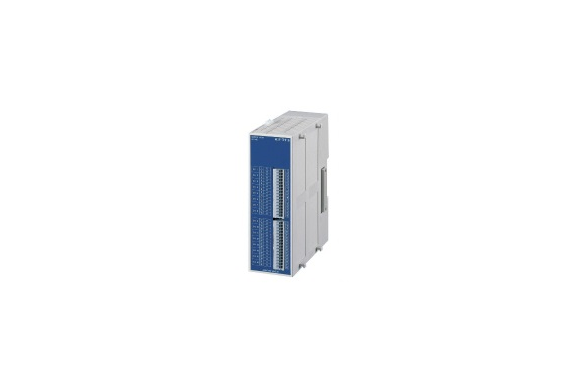

Watanabe WJF-THI16 Thermistor Input Unit – Remote I/O
Manufacturer: Watanabe Electric Industry Co. Ltd
Model: WJF-THI16
16-point thermistor sensor measurement is possible with one function unit dedicated to the joint module that measures thermistor signals (Ishizuka Electronics 103AT)
Specifications
| input signal | Temperature (thermistor) x 16 points SEMITEC thermistor (103AT) |
|---|---|
| output signal | none |
| communication | LAN LONWORKS communication (TP/FT-10) Real link communication (TP/XF-78) *Depends on the connected main unit |
| power supply | Supplied from main unit |
| tolerance | ±2°C |
| mass (weight) | about 150g |
| External dimensions (HWD) | 126×46.6×100mm |
| Operating temperature and humidity | -5~+55℃ 90%RH or less |
