Yamato Electric
Yamato Electric GAN3-NS-2DFM-2L3
Manufacturer: Yamato Electric Co., Ltd.
Model: GAN3-NS-2DFM-2L3
SPT-22 Series (2 Circuits)

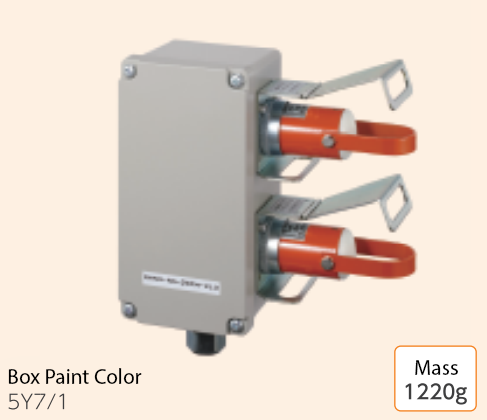

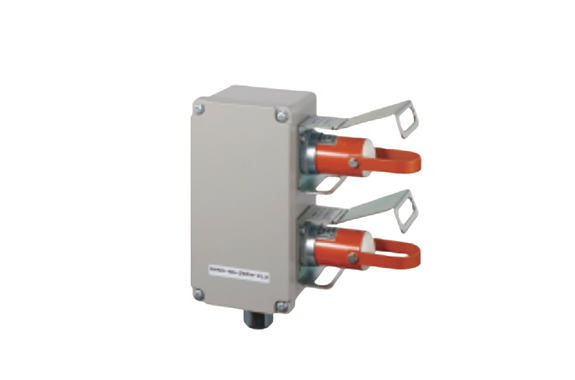

Simple Side Type: The product is the L-type specification at the time of shipment. (The photo is the L-type) Changes to the R-type must be carried out by the customer.
GAN3-NS-2DFM-2L3
- Without Pushbutton
- With Locking Metal Fitting
Composition
| Box | GAN-3 |
| Socket | SPT-22F (2 pcs) |
| Plug | SPT-22M (2 pcs) |
| Locking Metal Fitting | SPT-L3 (2 pcs) |
| Connector | AYS-9 to 11 |
