Yamato Electric LS2A Series Stainless Steel Saddle
Manufacturer: Yamato Electric Co., Ltd.
Model: LS2A Series

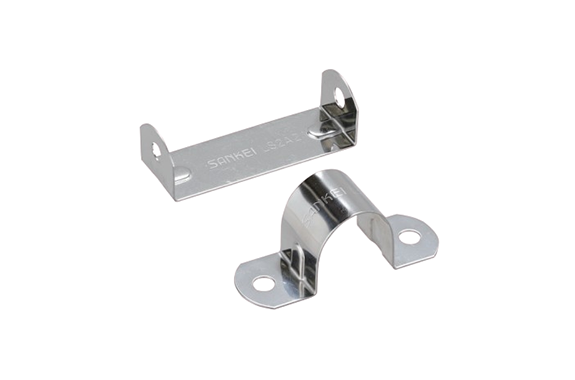

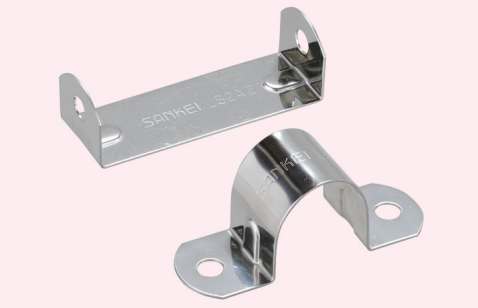

Stainless Steel Saddle LS2A
- This is a stainless steel saddle for fixing flexible conduits.
- The minimum sales unit is per bag (or package unit).
Unit: mm

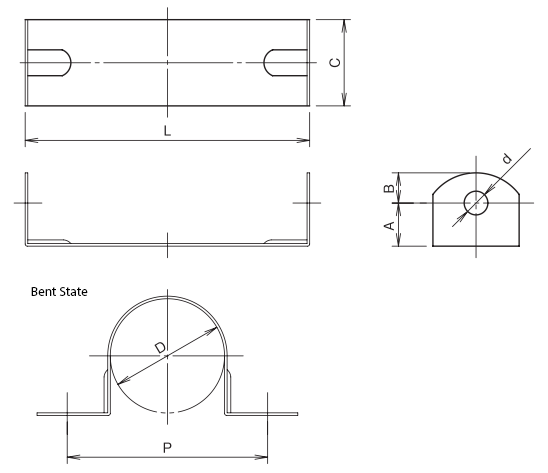

| Nominal Size | Code | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Outer Dia. of Pipe | A | B | C | d | L | P | Applicable Flexible Conduit | Qty/Bag | ||||||
| LS2A 15 | 16.1 | 10 | 7 | 15 | 5.5 | 39 | 37 | FAG-10 | 25 | |||||
| 17 | 18 | 44 | 39 | FAG-12 | ||||||||||
| 21 | 22 | 55 | 43 | FAG-16 | ||||||||||
| 26 | 26.5 | 66 | 48 | FAG-22 | ||||||||||
| 33 | 34 | 20 | 85 | 55 | FAG-28 | |||||||||
| 42 | 42 | 106 | 63 | FAG-36 | ||||||||||
| 48 | 48 | 121 | 69 | FAG-42 | ||||||||||
| 59 | 60 | 12 | 9 | 30 | 6.5 | 152 | 85 | FAG-54 | ||||||
| 75 | 76 | 193 | 101 | FAG-70 | ||||||||||
| 88 | 89 | 227 | 114 | FAG-82 | ||||||||||
| Material | Stainless Steel t0.6 | |||||||||||||
| Remarks | ||||||||||||||
Installation Method
When the center of the saddle is placed perpendicular to the flexible conduit and both ends are pushed down, it bends along the outer shape of the flexible conduit. Fasten with screws when the mounting holes become parallel to the installation surface.
