Yamato Electric
Yamato Electric SPS-22A/B And SPS-24A/B
Manufacturer: Yamato Electric Co., Ltd.
Model: SPS-22A/B, SPS-24A/B
Feature
- This is a compact, space-saving product.
- The plug and socket can be inserted and extracted with a single touch and are locked, allowing for downward installation.

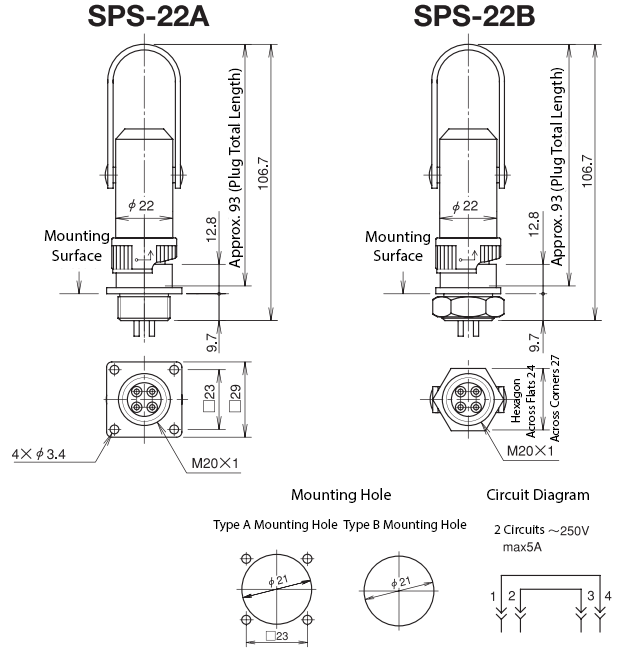

- The 22 type is a product compatible with 2 circuits.

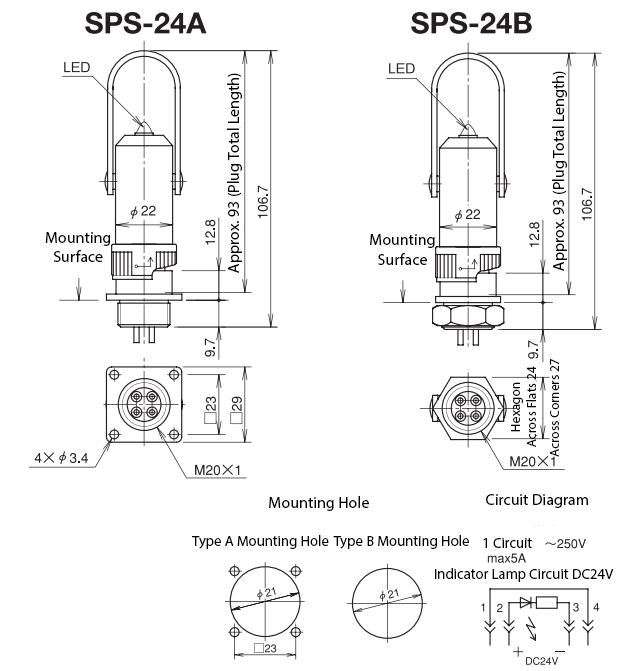

- The 24 type is LED-equipped, allowing confirmation that power is being supplied (that it is energized).
- Since there are 4 types of products, please refer to the model list table.
Specifications
| Rating | 250V, 5A (Min 24V, 5mA) |
| Mass | SPS-22A: 120g SPS-22B: 130g SPS-24A: 115g SPS-24B: 125g |
| Wiring Terminal | Solder Connection |
| Handle Mounting | Rivet |
| Mounting Plate Thickness | SPS-22B, SPS-24B: Max 4.5mm |
Model List Table
| Model | LED | Flange Mounting | Nut Mounting | |
|---|---|---|---|---|
| With | Without | |||
| SPS-22A | ● | ● | ||
| SPS-22B | ● | ● | ||
| SPS-24A | ● | ● | ||
| SPS-24B | ● | ● | ||
