Yamato Protec Corporation
Yamato Protec High Pressure Type Microfog C
Manufacturer: Yamato Protec Corporation
Model: High Pressure Type
Application

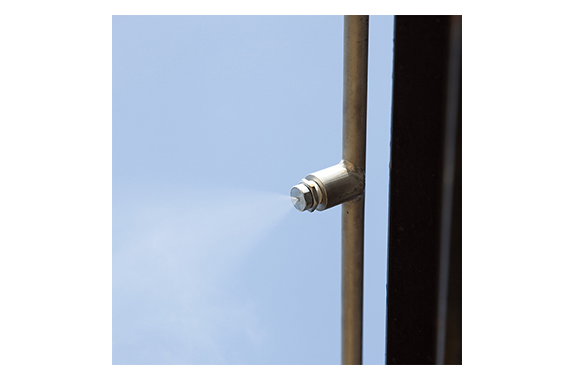

By deploying a fine mist from the spray head, the system reduces the ambient outdoor temperature by 2–3°C. The ‘Microfog C’ misting technology utilizes the core principles of ‘Microfog’—a highly efficient water-mist fire suppression system trusted across numerous commercial and industrial facilities.High-pressure spray nozzle
| Model | YMH-5C-1.5SU | ||
|---|---|---|---|
| Operating pressure range | 2.0–6.0 MPa | ||
| Spray volume (per nozzle) | Approx. 40mL/min (at 6.0MPa water discharge) | ||
| Spray particle diameter (Sauter average diameter) | Approximately 17μm (at 6.0MPa water discharge) | ||
| Nozzle installation interval | 0.8m or 0.5m (standard) | ||
Features
This is a high-pressure type that uses a pump to pressurize and spray a fine mist.
Recommended installation location
It is recommended for cooling and heat dissipation in large indoor facilities such as factories and warehouses, as well as for heatstroke prevention at outdoor sports facilities, promenades, and events, and for visual effects in commercial facilities.
Control unit
| 1L type | 2L type | 4L type | |
|---|---|---|---|
| Model | YMS-CH-WM1002/B | YMS-CH-SW1M-0.5mini | YMS-CH-SW1M-22mini |
| Input power | AC100V | ||
| Driving control | Intermittent operation controlled by a timer | ||
| Pump maximum discharge pressure | 6 MPa | ||
| Pump discharge volume | 0.9L/min (50Hz) 1.0L/min (60Hz) | 1.7L/min (50Hz) 2.0L/min (60Hz) | 3.3L/min (50Hz) 4.0L/min (60Hz) |
| Pump motor output | 0.2kW | 0.4kW | 0.75kW |
