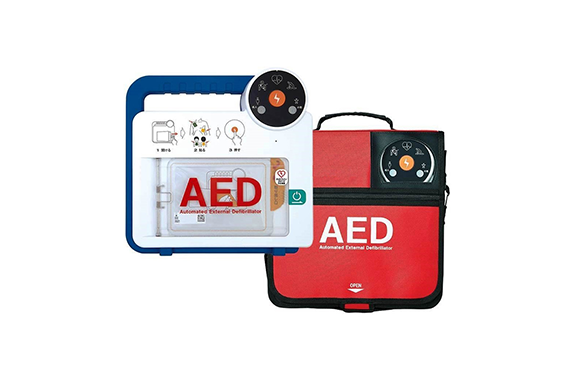

This is Japan’s first pad cartridge system, born from the pursuit of “ease of use” for both administrators and users. It features an innovative, integrated cartridge that combines the electrode pads and battery into a single, seamless unit.
| Model number | RQ-5000 |
|---|---|
| Basic Set | Main unit + 1 pad cartridge |
| Basic set accessories | First aid kit, carrying bag for RQ-5000, CD for data management software, AED installation sticker, instruction manual, complete set of documents (warranty, etc.), display tag, accompanying documents, DVD for Cardiac Rescue operation instructions. |
| Output energy | Adults: 180J; Children: 50J (resistance 50Ω) |
| Output waveform | Biphasic waveform |
| Basic operation | The electrocardiogram is analyzed to determine if defibrillation is necessary.If applicable, the device alerts the operator once the capacitor stores the required energy and arms the system for shock delivery. |
| Service life | 6 years and 6 months since manufacture |
| Warranty period | 5 years after installation |
Japan’s first pad cartridge system, born from the pursuit of “ease of use” for administrators and users.
It uses a pad cartridge that integrates the electrode pads and battery.
One button switches patient modes on these universal electrode pads, eliminating the need for multiple types.By eliminating manual steps like selecting electrode pads and connecting cables, this intuitive layout actively mitigates operator error.
The universal pad-and-battery cartridge reduces running costs and simplifies inventory management, including expiration checks.
Protective performance that expands the range of applications.
With its high durability, having passed a 1.5m drop test, and its dustproof and waterproof capabilities compliant with IP55 protection rating, it can be used both indoors and outdoors in environments where rain and wind are a concern.
Two test functions to make daily inspections more accurate
- Automated self-test
- The system performs a fully automated inspection once a day at a set time, and the product’s status is indicated by indicator lights.
Manual Self-Test
You can check the latest status at any time with the push of a button. Diagnostic test results are communicated via both visual status indicators and audible voice messages.
Comprehensive data management features
With Bluetooth and USB connectivity, you can use your computer to view the ambient sounds from rescue operations, electrocardiograms, the number of electric shocks administered, and daily test results stored on the device. *Requires dedicated software.
Simple design enabling intuitive and quick operation
To turn it on, simply slide the power switch and open the cartridge cover.
Upon activation, the device provides an intuitive user interface accessible to all operator levels, utilizing synchronized voice prompts, LED progress indicators, and step-by-step visual illustrations.
Equipped with cardiopulmonary resuscitation (CPR) coaching function.
Following shock delivery, the operator should immediately resume cardiopulmonary resuscitation (CPR) as prompted by the device.
A beep sounds to indicate when to perform chest compressions, and the CPR lamp flashes at a rate of 110 times per minute *1. The device provides real-time voice prompts announcing the remaining time until the next scheduled ECG analysis *2 .
1. The JRC (Japan Resuscitation Council) composition guidelines specify a chest compression tempo of 100 to 120 compressions per minute.
2. The device performs a cardiac rhythm analysis automatically every two minutes.”
