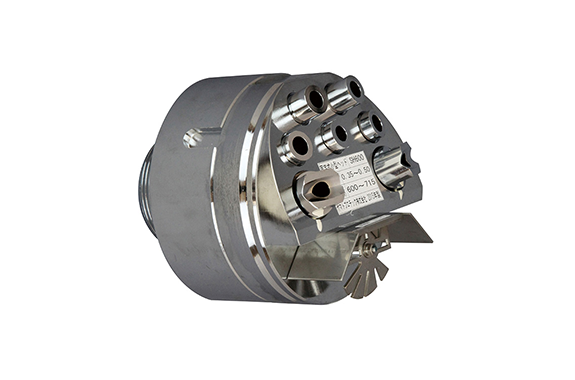

Yamato Protec SH600 Water Discharge Type Sprinkler Head
Manufacturer: Yamato Protec Corporation
Model: SH600
Application
This water-spraying head mounts on the ceiling of high-ceilinged areas. In conjunction with fire detectors and other devices, it covers a wide area of the protected zone and extinguishes fires quickly with a powerful stream of water.
| type | Fixed head (small head) |
|---|---|
| Model | SH600 |
| Test number | S015H0010 |
| Standard discharge pressure and discharge rate | 0.35 MPa – 600 L/min |
| Operating pressure range and discharge volume | 0.35～0.50Mpa 600～715L/min |
| Effective water discharge range (H is the mounting height) | 3m≦H＜6m 93.2㎡ 6m≦H≦10m 100.7㎡ |
| Mounting angle | horizontal |
| mass | 3.0kg |
