Yamato Protec Corporation

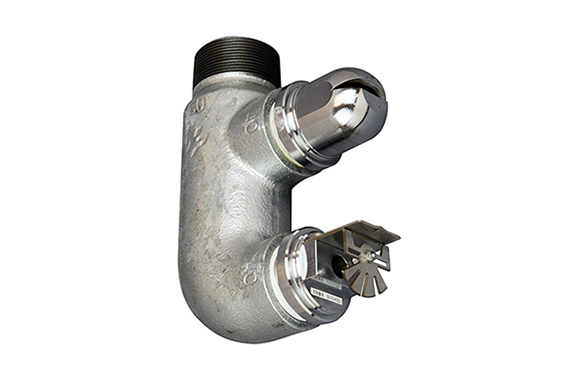

Yamato Protec SHD302001 Water Discharge Type Sprinkler Head
Manufacturer: Yamato Protec Corporation
Model: SHD302001
Application
This water-spraying head mounts on the ceiling of high-ceilinged areas. In conjunction with fire detectors and other devices, it covers a wide area of the protected zone and extinguishes fires quickly with a powerful stream of water
| type | Fixed head (small head) |
|---|---|
| Model | SHD302001 |
| Test number | S015H003 |
| Standard discharge pressure and discharge rate | 0.20 MPa – 300 L/min |
| Operating water discharge pressure and discharge volume | 0.20MPa～0.35MPa 300～395L/min |
| Effective water discharge range (H is the mounting height) | 3m≦H<5m 48.9㎡ 5m≦H≦12m 57.9㎡ |
| Mounting angle | horizontal |
| mass | 3.5kg |
