Yamato Protec Corporation

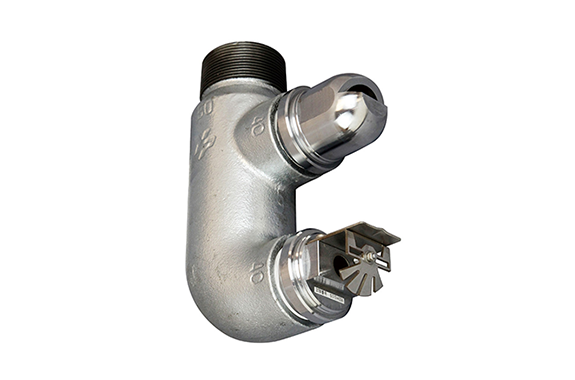

Yamato Protec SHD372001 Water Discharge Type Sprinkler Head
Manufacturer: Yamato Protec Corporation
Model: SHD372001
Application
This water-spraying head mounts on the ceiling of high-ceilinged areas. In conjunction with fire detectors and other devices, it covers a wide area of the protected zone and extinguishes fires quickly with a powerful stream of water
| type | Fixed head (small head) |
|---|---|
| Model | SHD372001 |
| Test number | S015H004 |
| Standard discharge pressure and discharge rate | 0.20 MPa – 370 L/min |
| Operating pressure range and discharge volume | 0.20～0.35Mpa 370～485L/min |
| Effective water discharge range (H is the mounting height) | 3m≦H＜5m 50.1㎡ 5m≦H≦11m 54.6㎡ |
| Mounting angle | horizontal |
| mass | 3.5kg |
