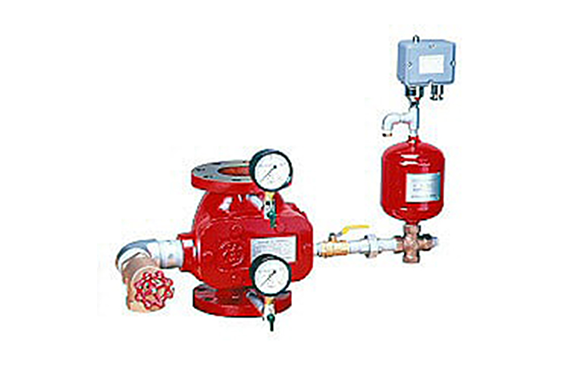

This is an automatic alarm valve type water flow detection device that detects the water flow generated by the operation of sprinkler heads and issues an alarm.
| Product name | SV4II-P1WC |
|---|---|
| Model number | Flow No. 5-4 |
| Nominal pressure | 10K |
| Installation method | vertical |
| Operating pressure range | 0.15 MPa to 1.37 MPa |
| Working flow rate | 80L/min or more |
| Non-operating flow rate | 15L/min or less |
| Contact capacity | AC 100/200V, 10/7A |
| DC 24/48V, 3/2A | |
| Wiring method | ①-③ or ④-⑥ |
| Switching pressure | 0.03 MPa, 0.01 MPa |
