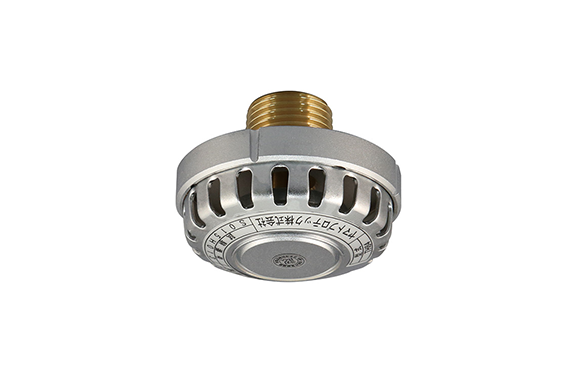

Yamato Protec TH84 Water Discharge Type Sprinkler Head
Manufacturer: Yamato Protec Corporation
Model: TH84
Application
This water-spraying head mounts on the ceiling of high-ceilinged areas. In conjunction with fire detectors and other devices, it covers a wide area of the protected zone and extinguishes fires quickly with a powerful stream of water.
| type | Fixed head (small head) |
|---|---|
| Model | TH84 |
| Test number | S015H013 |
| Standard discharge pressure and discharge rate | 0.10 MPa – 84 L/min |
| Operating water discharge pressure and discharge volume | 0.10MPa-0.40MPa 84~168L/min |
| Effective water discharge range (H is the mounting height) | 2m ≤ H ≤ 18m 16.0㎡ |
| Mounting angle | vertical |
| mass | 0.14kg |
