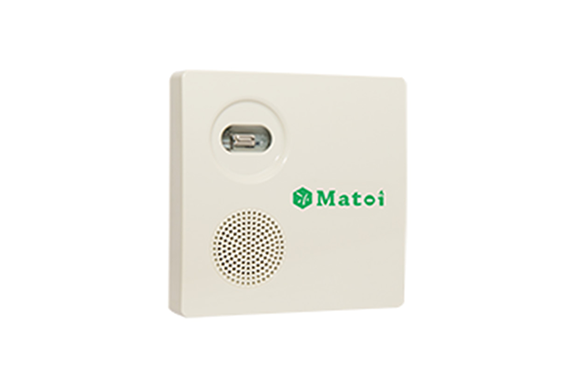

Yamato Protec UVS-07BN Arson Monitoring Sensor
Manufacturer: Yamato Protec Corporation
Model: UVS-07BN
Application
This simple arson monitoring sensor can detect a tiny flame as small as 3cm at a distance of 4m in just 0.5 seconds and reliably sound an alarm.Dry-cell batteries power the unit, eliminating complex wiring and simplifying the installation process. The mounting base is detachable, making maintenance easy.
| Product name | UVS-07BN |
|---|---|
| Model number | Quality Broadcasting No. 2024-2 |
| Detection method | Ultraviolet detection method (UV tube method) |
| Detection distance | 4m (due to a flame approximately 3cm in diameter directly in front of the sensor) |
| Detection directionality | Sensor angle: 60 degrees up and down from the horizontal plane, 50 degrees left and right from the vertical plane. |
| Power consumption | Standby: 50μA or less Operating: 200mA |
| power supply | AA alkaline battery LR6: Approximately 2 years; Lithium battery 2CR17450E-R-CN8: Approximately 5 years |
| indicator light | When UV light is detected, it flashes at intervals of approximately 0.2 seconds. |
| volume | 80dB or higher (at 1m in front of the sensor) |
| Operating temperature range | 0°C to 40°C (humidity 90% Rh or less, but without freezing or condensation) |
| mass | Approximately 150g |
