Yamato Protec Corporation

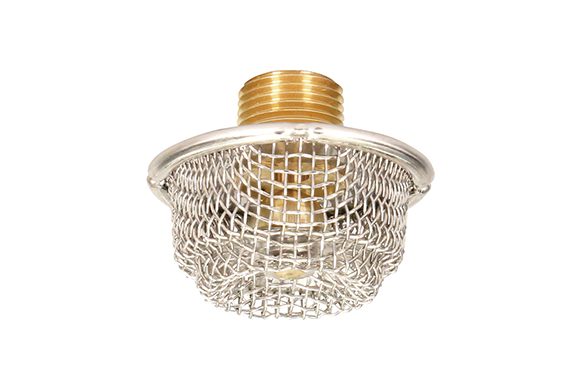

Yamato Protec YAH-35T Foam Head
Manufacturer: Yamato Protec Corporation
Model: YAH-35T
Application
The foam head has passed the performance evaluation of the Japan Fire Equipment Safety Center and is used in fixed foam fire extinguishing systems. It extinguishes fires by simultaneously foaming a pressurized aqueous solution with a pump and distributing it evenly in a circular pattern.
| Product name | YAH-35T |
|---|---|
| Standard radiation pressure and radiation dose | 0.25 MPa – 35 L/min |
| Radiation pressure and radiation dose range | Upper limit: 0.69 MPa – 58.3 L/min |
| Lower limit: 0.25 MPa – 35.0 L/min | |
| Installation height range | Upper limit: 8m Lower limit: 1.6m |
| Installation conditions | One unit per 9 m² and with a coverage radius of 2.1 m |
| Fire extinguishing agent used | Aqueous film-forming (2% type) Alpha Foam 210R (Foam No. 23-5) Aqueous film-forming (3% type) Alpha Foam 310X (Foam No. 30-2) Alpha Foam 310R (Foam No. 19-26) Alpha Foam 310 (Foam No. 10-1) Light Water (Foam No. 53-5) Synthetic surfactant (3% type) Zero Fluorine One Foam 310 (Foam No. 2025-6) |
| Performance rating number | 221T158 |
| mass | 82g |
