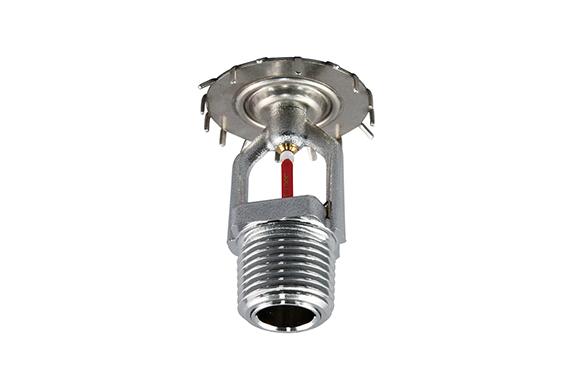

Yamato Protec YCXU68-26-10 Closed Type Foam Solution Head
Manufacturer: Yamato Protec Corporation
Model: YCXU68-26-10
Application
This system combines the functions of a conventional fire detection head, a simultaneous release valve, and a foam head into a single closed-type foam solution head.
| name | Closed-type foam solution head, valve type C68, sensing range r2.6, nominal size 15 (standard r2.6, upward direction, foaming ratio less than 5 times) |
|---|---|
| Model number | Certification and Closing No. 2020-2 |
| Mounting direction | Upward |
| Operating pressure | 0.35 MPa to 1.00 MPa |
| Radiation | 43 L/min to 72.7 L/min |
| Mounting height | 1.5m to 10.0m |
| Effective radiation range | r2.6m |
| Effective detection range | r2.6m |
| Foam fire extinguishing agent used | Bubbles No. 19-26 |
| mass | Approximately 70g |
