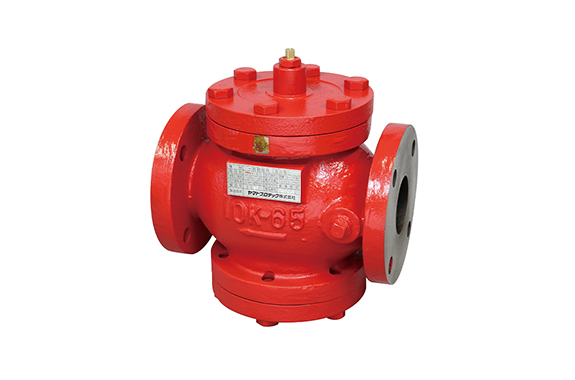

Yamato Protec YDVK-65 Simultaneous Opening Valve
Manufacturer: Yamato Protec Corporation
Model: YDVK-65
Application
Technicians use it as a localized opening valve for fixed foam fire extinguishing systems, water spray fire extinguishing systems, or open-type sprinkler systems installed on stages, etc.
| Nominal diameter | 65A-10K |
|---|---|
| Product name | YDVK-65 |
| Mounting direction | Can be used vertically or horizontally |
| Model number | Kai No. 16-15 |
| Flow rate range (maximum) | 1200 L/min |
| Pressure loss equivalent pipe length | 20.8m |
| mass | 32.4 kg |
| coating | Exterior: Lacquer (red) |
| Interior: Epoxy resin coating (black) | |
| Operating pressure range | 0.15–1.4 MPa |
| Material | Valve box: FC200 |
Overview
The YDVK type simultaneous opening valve (pressurized) primarily supports sprinkler fire extinguishing systems, etc.It has passed the tests stipulated in the Ministerial Ordinance (Ministry of Home Affairs Ordinance No. 19 of 1975) that establishes technical standards for simultaneous opening valves, based on the provisions of Article 21-4, Paragraph 2 of the Fire Service Act. The valve body employs a double valve system divided into a main valve and a sub-valve; this system opens and closes the valve in two stages, making it less susceptible to water hammer.
