Yamato Seitosyo Corporation

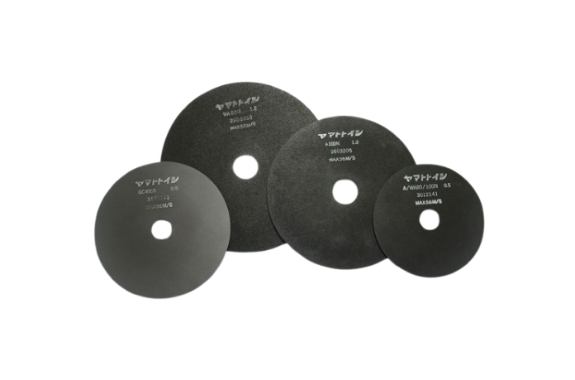

Yamato Seitosyo Super Cut Off Wheels
Manufacturer: Yamato Seitosyo Corporation
Model: A / WA / A-WA
Feature
- It features excellent thickness accuracy, sharp cutting performance, and long grinding stone life.
- It can be used in both wet and dry conditions, and it performs particularly well in wet applications.
- A wide variety of options are available, including different abrasive materials (A series, C series), grit sizes, and bonding grades.
Standard products
| Abrasive | Grit Size | Bond | Dimensions |
|---|---|---|---|
| A | 120 | N | 230×1.2×31.75 |
| 255×1.2×31.75 | |||
| WA | 120 | N | 230×1.2×31.75 |
| 255×1.2×31.75 | |||
| 305×1.2×31.75 | |||
| 305×1.5×31.75 | |||
| A/WA | 80/100 | N | 150×0.5×25.4 |
| 150×0.7×25.4 | |||
| 150×1.0×25.4 | |||
| 205×0.8×25.4 | |||
| 205×1.0×25.4 |
Selection Criteria
| OPERATING CONDITIONS | WORKPIECE | ||
|---|---|---|---|
| Grinding Wheel Speed | rpm | Part Name | |
| Feed Speed | Wheel / Work (m/s) | Material | |
| Cutting Method | Dry / Wet | Hardness (HRC) | |
| Motor Power | HP | Dimensions | |
| Time per Cut | sec | Number of Cuts | |
| Ammeter Load | Finished Surface | ||
| Number of Wheels | pcs | ||
| Grinding Fluid | Wheel Dimensions | × × | |
