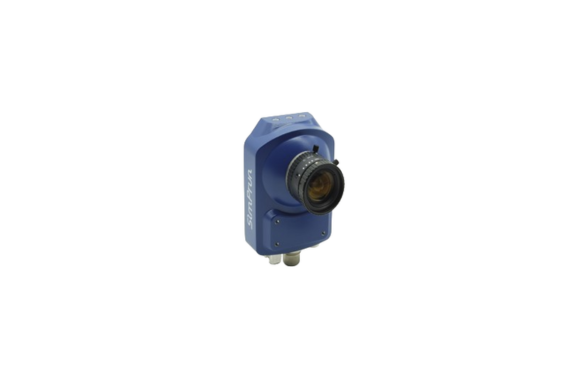

Yaskawa SimPrun-200 Vision System

Manufacturer: YASKAWA MECHATREC SUEMATSU KYUKI CORP.
Model: SimPrun-200

This ARM-based, compact smart camera, compatible with MECHATROLINK-III, enables high-speed processing of location measurement, blob analysis, shape matching, and barcode/QR code recognition, contributing to faster and simpler systems.
Purpose of use: Inspection and detection

Product Description

MECHATROLINK-III and CC-Link IE Field compatible (certified). Moreover, the system features Bruegel image processing technology. In addition, dedicated software creates image-processing settings optimized for smart cameras and transfers them directly to the camera. Furthermore, users can combine various image-processing functions to support a wide range of applications.

As a result, the global shutter system captures moving objects without blur. Meanwhile, the compact design measures only 68 × 89 × 35 mm (W × H × D), excluding the lens and connector. Finally, interchangeable C-mount lenses provide additional flexibility.

Product Specifications

Basic specifications		Input/Output Signals
Processor	Dual-core ARM Cortex-A9	DIO
memory	512MB DDR3 800	input	4-point trigger x1, general purpose x3
Internal System Storage	8GB	output	4-point Ready x1, General Purpose x3
External SD card slot	1 port	interface
FPGA	Intel 5CSEMA5U23	General-purpose Ethernet
Image sensor	CMOS Image Sensor	Interface method	Gigabit Ethernet PoE
Effective pixels (H) x (V)	1,450 x 1,088	Transfer speed	1G bps (max)
Imaging area (H) x (V)	5.00 x 3.75 mm (1/2.9 type equivalent)	USB	USB 2.0 (for expansion)
Scanning method	progressive	MECHATROLINK	MECHATROLINK?
Electronic shutter system	Global Shutter	Recording format
Trigger mode	External triggers, soft triggers	Video capture format	Mono8, Mono10, Mono12
Lens mount	C mount	Maximum image capture resolution (H) x (V)	1,440 x 1080
		Maximum frame rate	226fps (Mono8, full pixel readout)
