Yoshida

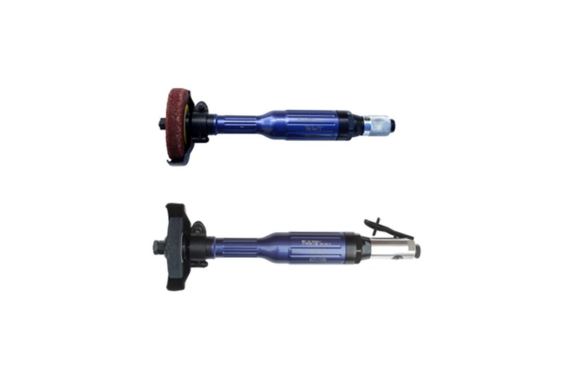

YOSHIDA YG-5H Series Straight Grinders
Manufacturer: Yoshida Mfg. Co., Ltd
Model: YG-5H Series
Light weight, Powerful and Durable
Low noise & Low working oscillation
Specification
For Flat Grinding Wheel
*Push Lock bar to release the lever
| Model | Throttle Type | Exhaust Direction | Rotational Frequency | Weel Size | Overall Length | Spindle Thread | Mass w/Guard | Max Air Consumption | Air Hose Size | Air Inlet Thread |
|---|---|---|---|---|---|---|---|---|---|---|
| min-1 | mm | mm | in | kg | Nm3/min | mm | – | |||
| YG-5H-1 | Roll | Side | 7,600 | 125x19x12.7 | 414.5 | W1/2-12 | 2.95 | 1.10 | 12.7 | RC3/8 |
| YG-5H-2 | Roll | Side | 7,600 | 125x19x15.8 | 421.5 | 5/8-11UNC | 2.98 | 1.10 | 12.7 | RC3/8 |
| YG-5H-1F | Safety Lever | Side | 7,600 | 125x19x12.7 | 438 | W1/2-12 | 3.10 | 1.10 | 12.7 | RC3/8 |
| YG-5H-2F | Safety Lever | Side | 7,600 | 125x19x15.8 | 445 | 5/8-11UNC | 3.13 | 1.10 | 12.7 | RC3/8 |
