- JWWA approved
- Directly connectable to pressure reducing valves
Japan, Yoshitake

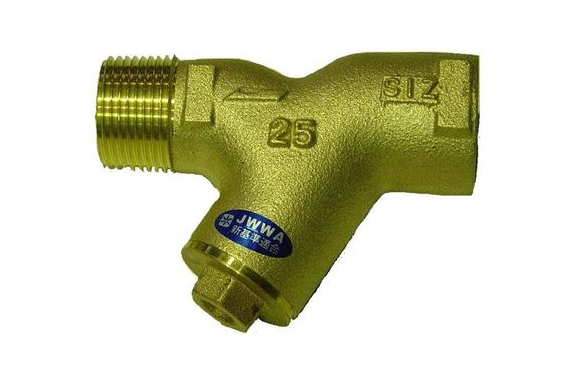

YOSHITAKE SY-24-N Strainer
Made in Japan
Manufacturer: Yoshitake
Model: SY-24-N
Specifications
| Features | Bronze (NPb-treated), Rc x R screwed, JWWA approved | |
|---|---|---|
| Specifications | Product type | Y type |
| Nominal size | 15A (1/2″) – 50A (2″) | |
| Application | Water | |
| End connection | Inlet: JIS Rc screwed Outlet: JIS R screwed | |
| Max. pressure | 1.6 MPa | |
| Working pressure | Max. 1.6 MPa | |
| Working temperature | Max. 80 degree(C) | |
| Screen | 2.5 mmDia.-7.21 holes/Sq.cm | |
| Mesh | Standard 60 mesh | |
| Material | Body | Bronze |
| Screen | Stainless steel | |
Dimensions and Weights
| Size | L (mm) | H1 (mm) | Weight (kg) |
|---|---|---|---|
| 15A(1/2) | 80 | 46 | 0.25 |
| 20A(3/4) | 90 | 51 | 0.35 |
| 25A(1) | 105 | 63 | 0.55 |
| 32A(1 1/4) | 130 | 80 | 1.0 |
| 40A(1 1/2) | 150 | 90 | 1.44 |
| 50A(2) | 175 | 112 | 2.9 |
