Mizumoto Machine Mfg. Co.

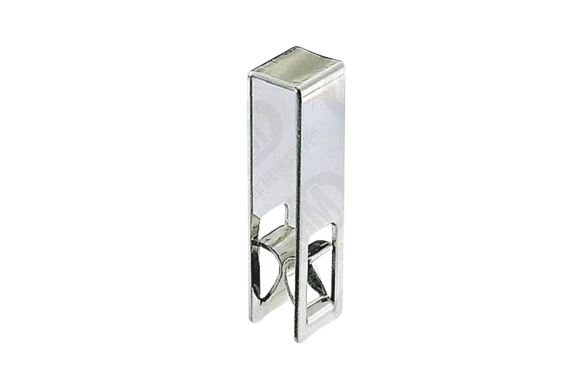

Mizumoto GCA Series Grating Clip
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: GCA Series
Features
- It can also be used for fine grain types.
- It is a one-touch type that can be simply plugged in.
- By fitting and connecting the part adjacent to the grating (groove lid) and the grating, it prevents flipping accidents caused by impact and suppresses the theft of the grating.
Specifications
| Model | L | W | W1 | H | T | Applicable Height | Weight (g) |
| NEW GCA-50 | 50 | 20 | 12 | 30 | 1.5 | 19–25 | 25 |
| GCA-60 | 60 | 20 | 16 | 37.5 | 1.5 | 19–32 | 31 |
| GCA-70 | 70 | 20 | 16 | 47.5 | 1.5 | 32–45 | 36 |
| GCA-80 | 80 | 20 | 18.5 | 54.5 | 1.5 | 38–50 | 38 |

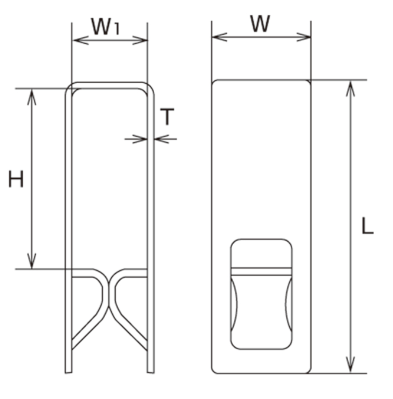

Dimensions (mm)
