Mizumoto Machine Mfg. Co.

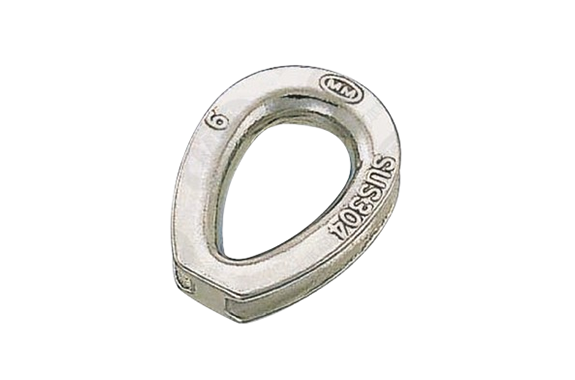

Mizumoto KS Series Thimble
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: KS Series
Features
- It is used as a wire course for terminal processing.
- When using the wire rope tip with eye processing, it prevents wire wear.
Specifications
| Part No. | D | L | A | B | Applicable Rope Diameter | Weight (g) |
| KS-2 | 5 | 12 | 2.5 | 4.5 | 2 | 4 |
| KS-3 | 10 | 19 | 3.5 | 6 | 3 | 16 |
| KS-4 | 13 | 27 | 5 | 8.5 | 4 | 24 |
| KS-6 | 16 | 27 | 6 | 9 | 6 | 37 |
| KS-8 | 24 | 43 | 8 | 10 | 8 | 51 |
| KS-10 | 28 | 50 | 10 | 13 | 10 | 104 |
| KS-12 | 34 | 62 | 12 | 16 | 12 | 150 |
| KS-14 | 37 | 74 | 14 | 17 | 14 | 170 |
| KS-16 | 44 | 81 | 16 | 20 | 16 | 302 |

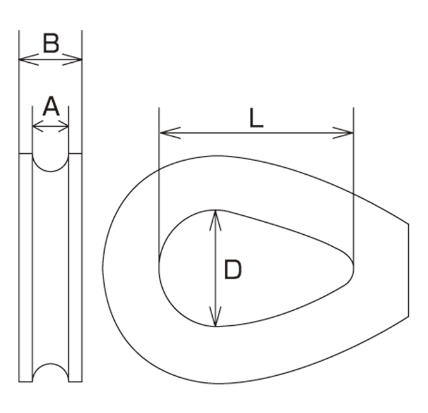

Dimensions (mm)
