Mizumoto Machine Mfg. Co.
Mizumoto HALC Series Aluminum Color Tube Protection Chain
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: HALC Series
Features
- The chain is available in 9 colors, and can be color-coded depending on the application.
- The tube color is transparent.

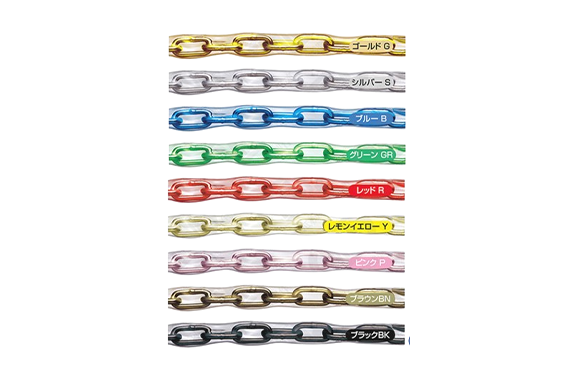

- 9 colors in total: Gold = G, Silver = S, Blue = B, Green = GR, Red = R, Lemon Yellow = Y, Pink = P, Brown = BN, Black = BK
Specifications
| Tube Color | Part No. | Wire Dia. d (mm) | Inner Length P (mm) | Inner Width W (mm) | Weight per meter (kg/m) | Reference Working Load | Price per 1m (JPY) | Max Length (m) | Tube Inner Dia. (mm) | ||
| (kgf) | (kN) | Incl. Tax | Excl. Tax | ||||||||
| Transparent | 3HALC-X | 3 | 24 | 5 | 0.049 | 25 | 0.25 | 3,190 | 2,900 | 30 | 1.3 |
| 3.5HALC-X | 3.5 | 27.5 | 6 | 0.067 | 40 | 0.39 | 4,180 | 3,800 | 30 | 1.3 | |
| 4HALC-X | 4 | 30 | 6.5 | 0.09 | 60 | 0.59 | 4,620 | 4,200 | 30 | 1.3 | |
| 5HALC-X | 5 | 33 | 8.5 | 0.14 | 140 | 1.37 | 5,060 | 4,600 | 30 | 1.3 | |
| 6HALC-X | 6 | 36 | 10 | 0.22 | 180 | 1.76 | 6,930 | 6,300 | 30 | 1.3 | |
*The color may differ from the actual product.
*The color may fade depending on the environment.
*For color, please replace the X part of the part number with the color part number.
*Material Chain: Aluminum light alloy (anodized) Tube
: PVC resin (polyvinyl chloride compound)
*Orders will be cut to the customer’s desired dimensions (1m or more).
*Customers under 1m will receive a separate estimate.
*Please check the delivery date when ordering.

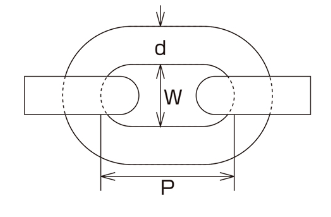

Dimensions (mm)
