Mizumoto Machine Mfg. Co.

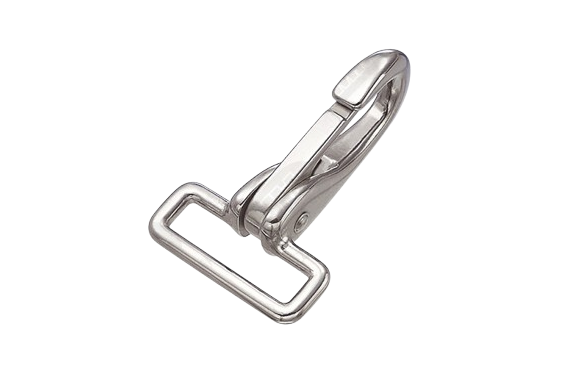

Mizumoto VB Series Fixed Belt Hook
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: VB Series
Features
- It can be used with a wide belt.
- As a connection bracelet with a belt-like flat object such as rubber or fiber, or as a joint for terminal fittings.
Specifications
| Product No. | D | L | W1 | W2 | S | H | t | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|
| VB-S1 | 4 | 65 | 16 | 22 | 8 | 7.7 | 5 | 37 | 30 | 0.29 |
| VB-0 | 4 | 65 | 20 | 22 | 8 | 7.7 | 5 | 38 | 30 | 0.29 |
| VB-1 | 4 | 65 | 26 | 22 | 8 | 7.7 | 5 | 40 | 30 | 0.29 |
| VB-2 | 4 | 65 | 31 | 22 | 8 | 7.7 | 5 | 40 | 30 | 0.29 |
| VB-3 | 4 | 65 | 41 | 22 | 8 | 7.7 | 5 | 44 | 30 | 0.29 |
| VB-4 | 5 | 82 | 51 | 29 | 10 | 9.5 | 5.5 | 86 | 50 | 0.49 |

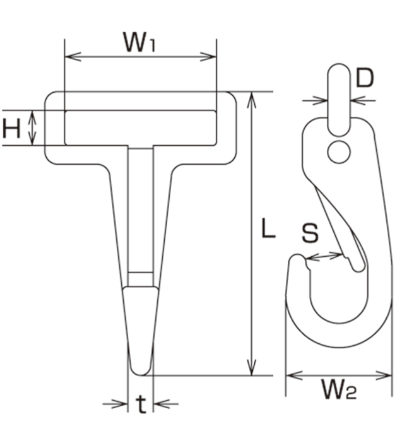

Dimensions (mm)
