Mizumoto Machine Mfg. Co.

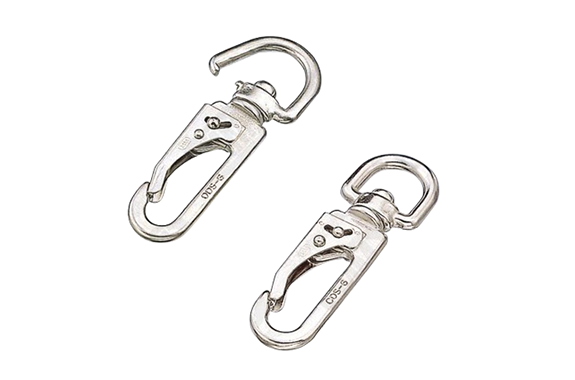

Mizumoto ODS, CDS Series Rotary Rock Snap
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: ODS, CDS Series
Features
- The one-touch lock function further increases safety.
- As a connecting bracket such as chain, wire, rope, etc., and as a joint of terminal fittings.
Specifications
| Product No. | D | L | W | H | d | t | S | D1 | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ODS-6 | 6.5 | 102 | 34 | 15.8 | 22 | 5 | 8 | 6 | 75 | 30 | 0.29 |
| CDS-6 | 6.5 | 102 | 34 | 15.8 | 22 | 5 | 8 | 6 | 74 | 30 | 0.29 |

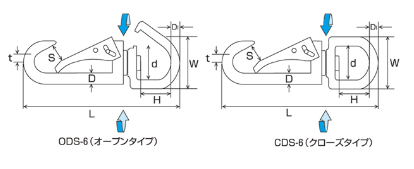

Dimensions (mm)
