Mizumoto Machine Mfg. Co.

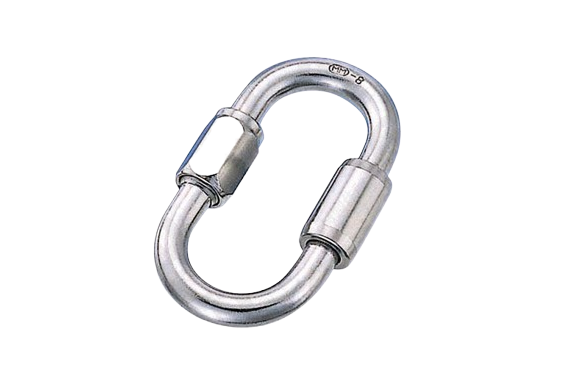

Mizumoto OP Series OPMM Ring ®
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: OP Series
Features
- By rotating the connecting part, it can be easily set on thick ropes.
- It is used for connecting chains, wires, ropes, etc., and for joints of terminal fittings.
Specifications
| Part No. | D | L | B1 | B2 | E | Weight (g) | Reference Working Load (kgf) | (kN) |
| OP-5 | 5 | 41 | 16 | 12 | 6.6 | 28 | 200 | 1.96 |
| OP-6 | 6 | 43 | 18 | 14 | 7.6 | 40 | 400 | 3.92 |
| OP-8 | 8 | 62 | 24 | 19 | 10.5 | 94 | 600 | 5.88 |
| OP-10 | 10 | 70 | 30 | 22 | 12.5 | 184 | 1000 | 9.80 |
| OP-13 | 13 | 84 | 34 | 27.5 | 15.5 | 329 | 2000 | 19.60 |
| OP-16 | 16 | 108 | 43 | 34 | 19.4 | 659 | 3000 | 29.40 |
| OP-19 | 19 | 130 | 50 | 39 | 22 | 1150 | 4000 | 39.20 |
| OP-22 | 22 | 155 | 60 | 48 | 27 | 1736 | 5300 | 51.94 |
| NEW OP-25 | 25 | 182 | 70 | 53 | 29 | 2640 | 6000 | 58.8 |
*By rotating the connecting part, thick ropes, chains, etc. can be easily set.

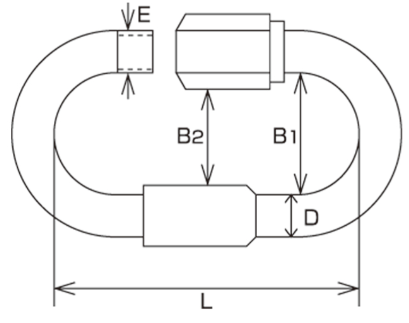

Dimensions (mm)
