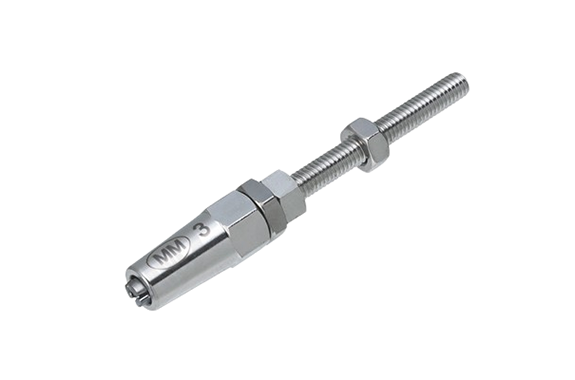

Mizumoto WLB Series Lock Terminal Bolt
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: WLB Series
Features
- The wire can be installed on site. At the terminal of the wire rope. Note: It cannot be used as a spreader.
Specifications
| Part No. | (L) | L1 | L2 | Thread Size | Applicable Wire Diameter | Weight (g) |
| WLB-3 | 85 | 27 | 45 | M-6 | 3 | 36 |
| WLB-4 | 100 | 32 | 55 | M-8 | 4 | 62 |
| WLB-5 | 115 | 38 | 60 | M-10 | 5 | 109 |
| WLB-6 | 145 | 46 | 80 | M-12 | 6 | 178 |
Material Casing, terminal, hex nut: stainless steel SUS316
Nail: stainless steel SUS420 series (chrome plated)
Anti-loosening nut / washer: brass
*Do not use as a hanging device.

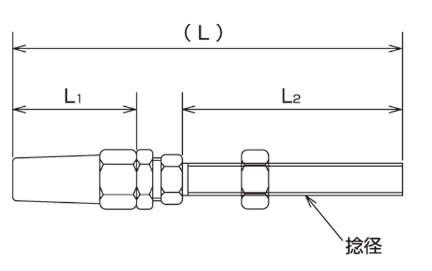

Dimensions (mm)
