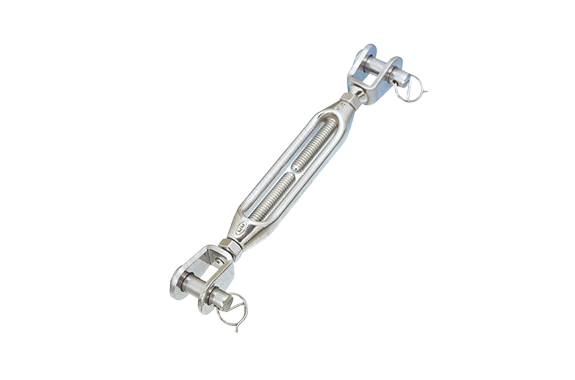

Mizumoto TB-J Series Frame Turnbuckle J&J
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: TB-J Series
Features
- The frame can be rotated to loosen or tighten.
- By removing the ring, it can be easily attached to the object.
- To adjust the tension of the wire rope.
Specifications
| Model | L | W | D | d | H | A | B | L1 | L2 | Thread Size | Weight (g) | Reference Working Load (kgf) | Reference Working Load (kN) |
| TB-5JM | 70 | 14 | 6 | 9.5 | 10 | 40 | 66 | 110 | 166 | M-5 | 70 | 100 | 0.98 |
| TB-6J | 90 | 19 | 8 | 10 | 10 | 50 | 80 | 140 | 195 | W-1/4 | 140 | 120 | 1.18 |
| TB-8J | 120 | 21 | 10 | 12 | 13 | 62 | 100 | 179 | 250 | W-5/16 | 260 | 250 | 2.45 |
| TB-9J | 150 | 26 | 12 | 15 | 18 | 77 | 123 | 223 | 320 | W-3/8 | 450 | 300 | 2.94 |
| TB-12J | 200 | 34 | 12 | 15 | 18 | 100 | 145 | 280 | 400 | W-1/2 | 735 | 500 | 4.90 |
| TB-16J | 250 | 40 | 14 | 24 | 25 | 125 | 190 | 353 | 515 | W-5/8 | 1380 | 800 | 7.84 |

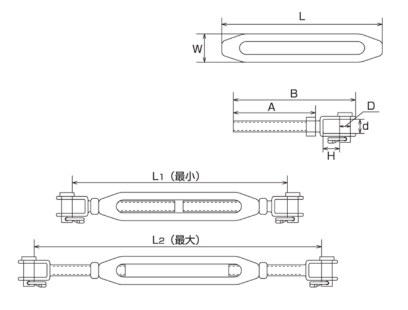

Dimensions (mm)
