Mizumoto Machine Mfg. Co.

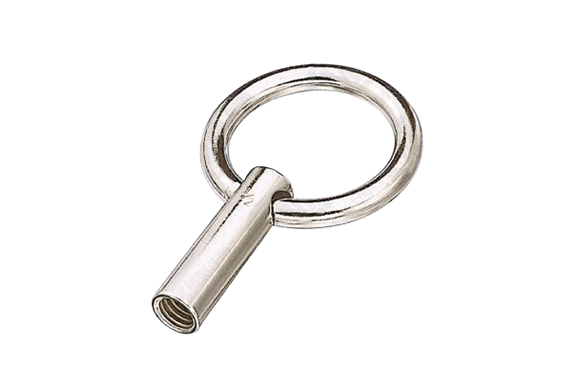

Mizumoto LN Series Ring Nut
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: LN Series
Features
- When not in use, the circular link will fall over, so it will not get in the way.
- It has a beautiful finish that looks great in interior decoration and is beautifully finished during construction.
- It is installed on walls, floors, pillars, etc., and is used as a terminal hardware for chains, wires, and ropes.
Specifications
Metric Thread
| Item Number | D | L | H | A | B | Thread | Weight (g) | Reference Weight (kgf) | Reference Weight (kN) |
|---|---|---|---|---|---|---|---|---|---|
| LN-6M | 5 | 35 | 26 | 10 | 20 | M-6 | 34 | 50 | 0.49 |
| LN-8M | 6 | 40 | 35 | 12 | 16 | M-8 | 59 | 80 | 0.78 |
| LN-10M | 8 | 45 | 45 | 13 | 27 | M-10 | 99 | 120 | 1.18 |
| LN-12M | 9 | 50 | 40 | 16 | 32 | M-12 | 138 | 180 | 1.76 |
Inch Thread
| Item Number | D | L | H | A | B | Thread | Weight (g) | Reference Weight (kgf) | Reference Weight (kN) |
|---|---|---|---|---|---|---|---|---|---|
| LN-6W | 5 | 35 | 26 | 10 | 20 | W-1/4 | 33 | 50 | 0.49 |
| LN-8W | 6 | 40 | 35 | 12 | 16 | W-5/16 | 59 | 80 | 0.78 |
| LN-10W | 8 | 45 | 35 | 14 | 13 | W-3/8 | 102 | 120 | 1.18 |
| LN-12W | 9 | 50 | 40 | 16 | 32 | W-1/2 | 137 | 180 | 1.76 |

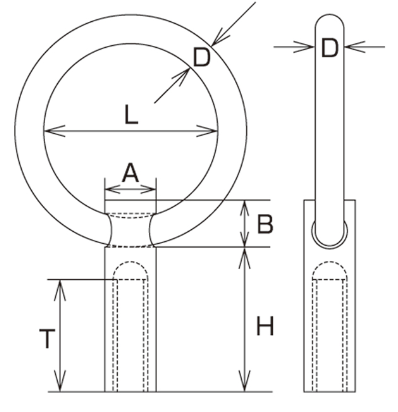

Dimensions (mm)
