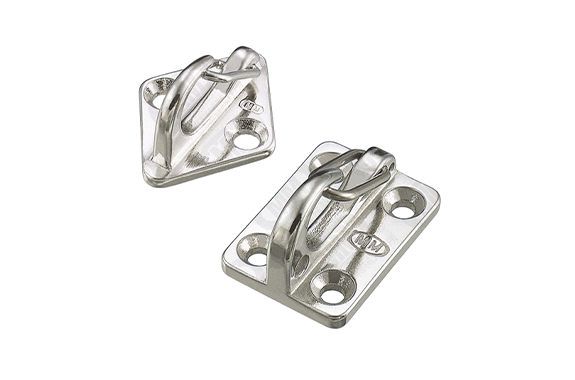

Mizumoto IPH Series Wall Hook IP Type
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: IPH Series
Features
- The hook part is with a detachment.
- It can be installed on the wall and used as a hanger or as a terminal hardware for chains and ropes.
Specifications
| Product Number | L1 | L2 | H | W1 | W2 | S | R | d | d2 | T | t | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IPH-0 | 42 | – | 23 | 32 | 20 | 10 | 25 | 5.2 | – | 3.5 | 4.5 | 28 | 10 | 0.10 |
| IPH-1 | 44 | 29 | 29 | 32 | 19 | 13 | 3.5 | 5.2 | 4.5 | 4.5 | 6 | 63 | 15 | 0.15 |
| IPH-2 | 53 | 35 | 35 | 38.5 | 23 | 15 | 4 | 6.2 | 4.5 | 5 | 7.2 | 102 | 20 | 0.20 |

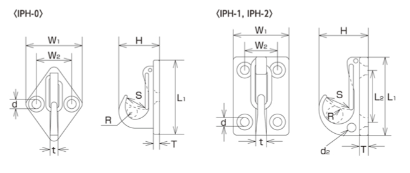

Dimensions (mm)
