Mizumoto Machine Mfg. Co.

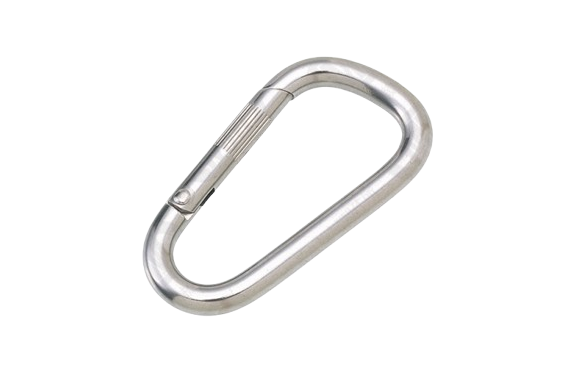

Mizumoto DE Series Snap Hook
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: DE Series
Features
- This is a hook with a smooth cut latch.
- It can be easily connected to the object.
- It is used to connect chains, wires, ropes, etc., and to joints of terminal fittings.
Specifications
| Product Number | D | L | W | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|
| DE-5 | 5 | 50 | 27 | 17 | 20 | 0.20 |
| DE-6 | 6 | 60 | 33 | 30 | 30 | 0.29 |
| DE-8 | 8 | 80 | 43 | 69 | 50 | 0.49 |
| DE-10 | 10 | 100 | 55 | 137 | 70 | 0.69 |

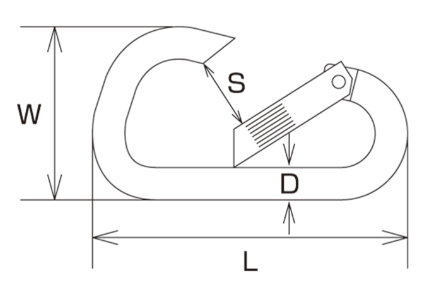

Dimensions (mm)
