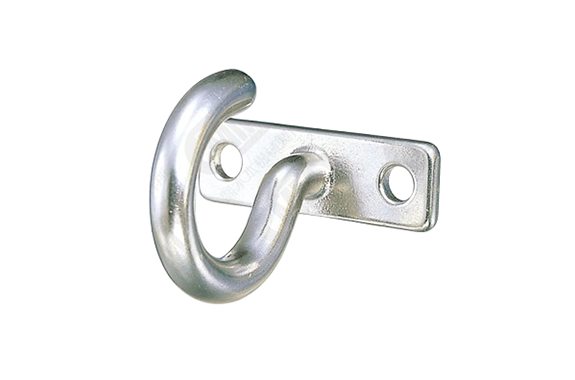

Mizumoto PH Series Plate Hook
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: PH Series
Features
- It can be mounted on surfaces with a narrow installation width.
- Since it is a counterboring type, please use a screw such as a nave head.
- It is installed on walls, floors, pillars, etc., and is used as terminal hardware for chains, wires, and ropes.
Specifications
| Model | D | L | W1 | W2 | H | S1 | S2 | d | T | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PH-3 | 3 | 7.5 | 25.5 | 18 | 20 | 6.5 | 8.5 | 3 | 2 | 4 | 3 | 0.03 |
| PH-4 | 4 | 10 | 34 | 24 | 26 | 8.5 | 11.5 | 4 | 2.5 | 10 | 6 | 0.10 |
| PH-5 | 5 | 12 | 40 | 28.5 | 32 | 10 | 15 | 5 | 3 | 18 | 8 | 0.15 |
| PH-6 | 6 | 14 | 44 | 32 | 37 | 12 | 17 | 5 | 3 | 28 | 20 | 0.20 |
| PH-8 | 8 | 16 | 50 | 36 | 49 | 15 | 23.5 | 6 | 3 | 54 | 30 | 0.29 |
| PH-10 | 10 | 18 | 58 | 40 | 58 | 19 | 29.8 | 8 | 4 | 91 | 50 | 0.49 |

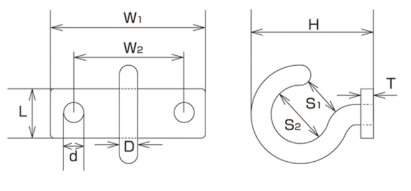

Dimensions (mm)
