Mizumoto Machine Mfg. Co.
Mizumoto RN Series Nascan (Color)
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: RN Series
Features
- The eye part rotates, so it doesn’t get tangled when connected.
- It opens with one touch, so you can easily join it.
- It is often used for pet mooring chains.

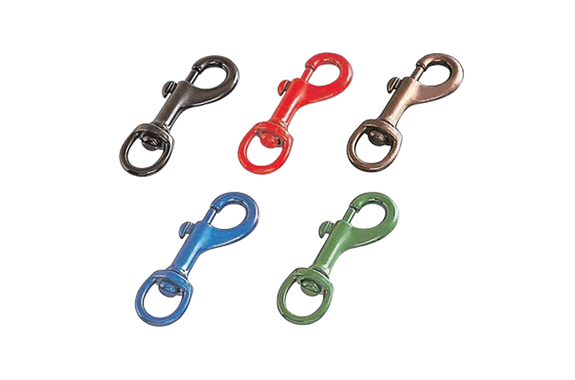

- 5 colors in total: R = Red, B = Blue, GR = Green, BN = Brown, BK = Black
Specifications
Material: Zinc Die-Cast
| Part No. | D | L | W | S | H | d | Weight (g) | Reference Working Load | |
| (kgf) | (kN) | ||||||||
| RN-0 | 3.5 | 65 | 17 | 7.5 | 9 | 16 | 10 | 0.10 | |
| RN-1 | 4 | 76 | 23 | 8 | 11 | 13.5 | 31 | 20 | 0.20 |
| RN-2 | 5 | 88 | 24 | 9 | 16 | 20 | 45 | 25 | 0.25 |

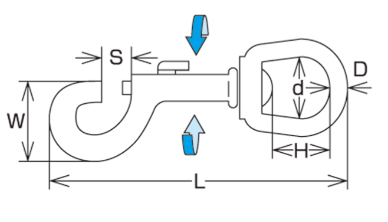

Dimensions (mm)
