Mizumoto Machine Mfg. Co.

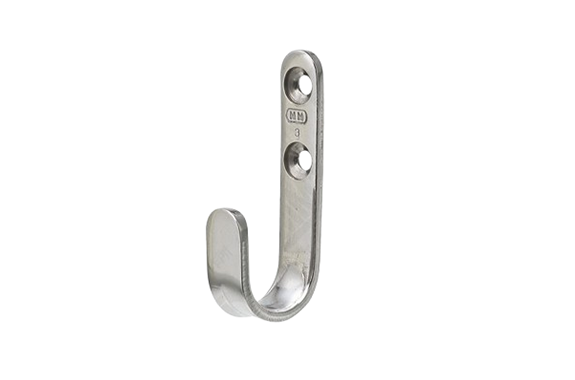

Mizumoto YFB Series Seat Hook Type B
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: YFB Series
Features
- It is made of stainless steel, rust-resistant, and durable. As a hanger.
Specifications
| Item Number | L (Length) | W (Width) | B (Breadth) | H (Height) | d | T | Weight (kg) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|
| YFB-2 | 35 | 7 | 11 | 17 | 2.1 | 2.5 | 7 | 10 | 0.10 |
| YFB-3 | 45 | 9 | 13 | 20 | 3.5 | 2.5 | 11 | 10 | 0.10 |
| YFB-4 | 50 | 11 | 13 | 25 | 4 | 2.5 | 15 | 10 | 0.10 |
*Type B (bagged) comes with stainless steel plate wood twister

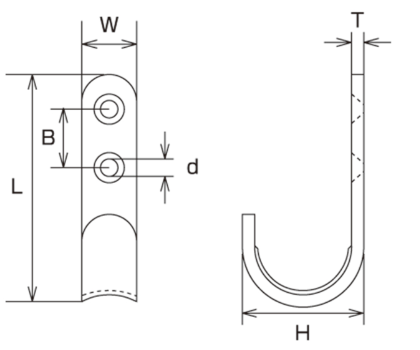

Dimensions (mm)
