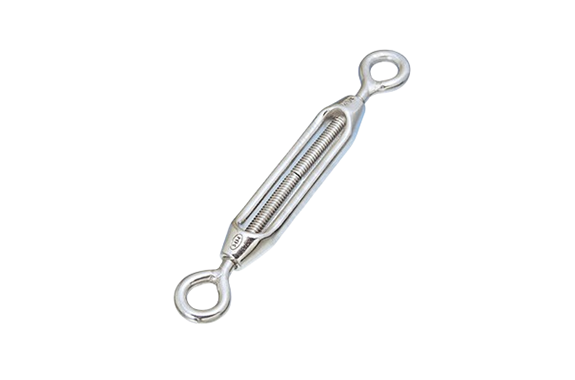

Mizumoto TB-E Series Frame Turnbuckle (Eye & Eye)
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: TB-E Series
Features
- The frame can be rotated to loosen or tighten.
- To adjust the tension of the wire rope.
Specifications
| Model | L | W | D | d | A | B | L1 | L2 | Thread Size | Weight (g) | Reference Working Load (kgf) | Reference Working Load (kN) |
| TB-3E | 45 | 8.5 | 2.6 | 7.5 | 22 | 40 | 80 | 108 | M-3 | 10 | 40 | 0.39 |
| TB-4EM | 57 | 13 | 3.4 | 10 | 28 | 52 | 105 | 143 | M-4 | 25 | 90 | 0.88 |
| TB-5E | 70 | 14 | 4 | 10 | 35 | 60 | 120 | 165 | W-3/16 | 45 | 130 | 1.27 |
| TB-5EM | 70 | 14 | 4.2 | 10 | 35 | 60 | 120 | 165 | M-5 | 48 | 130 | 1.27 |
| TB-6E | 90 | 19 | 5.5 | 10 | 45 | 74 | 150 | 205 | W-1/4 | 98 | 200 | 1.96 |
| TB-8E | 120 | 21 | 7 | 14 | 60 | 95 | 190 | 270 | W-5/16 | 195 | 300 | 2.94 |
| TB-9E | 150 | 26 | 8.3 | 15 | 75 | 122 | 245 | 345 | W-3/8 | 300 | 450 | 4.41 |
| TB-12E | 200 | 34 | 11 | 21 | 100 | 155 | 310 | 470 | W-1/2 | 660 | 700 | 6.86 |
| TB-16E | 250 | 40 | 14.5 | 25 | 120 | 183 | 380 | 540 | W-5/8 | 1280 | 900 | 8.82 |
| TB-19E | 300 | 56 | 18 | 28 | 135 | 221 | 470 | 660 | M-20 | 2500 | 1300 | 12.74 |
| TB-22E | 325 | 60 | 20.3 | 70×45 | 155 | 290 | 585 | 800 | M-22 | 3540 | 2100 | 20.58 |
| TB-25E | 350 | 65 | 22 | 75×50 | 170 | 318 | 640 | 882 | M-24 | 4625 | 2700 | 26.46 |

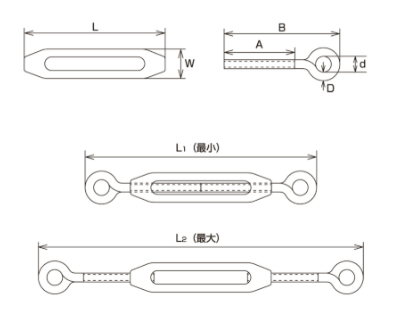

Dimensions (mm)
