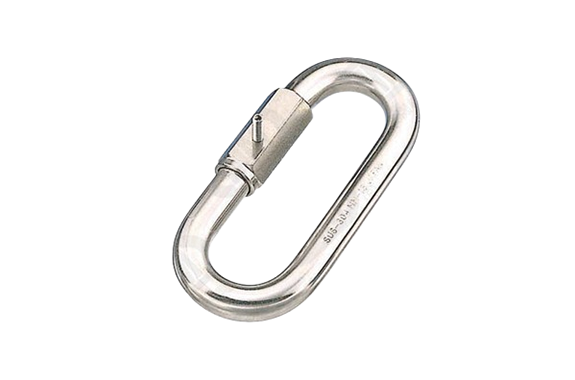

Mizumoto SHM Series Screw Ring Catch
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: SHM Series
Features
- It is locked with a set screw (holo screw) with a hexagonal hole, so it is difficult for the nut to come off.
- You can also unscrew it and open it again.
- It is used for connecting chains, wires, ropes, etc., and for joints of terminal fittings.
Specifications
| Part No. | D | S | L | B1 | B2 | E | Wrench Size | Weight (g) | Reference Working Load (kgf) | (kN) |
| SHM-4 | 4 | 6.5 | 34 | 11 | 9.5 | 4.4 | 1.5 | 11 | 50 | 0.49 |
| SHM-5 | 5 | 8.5 | 42 | 13 | 11.5 | 5.4 | 1.5 | 20 | 80 | 0.78 |
| SHM-6 | 6 | 9.5 | 49 | 15 | 13.5 | 6.5 | 1.5 | 32 | 150 | 1.47 |
| SHM-8 | 8 | 10.5 | 61 | 17 | 15 | 8.5 | 1.5 | 72 | 350 | 3.43 |
| SHM-9 | 9 | 11.5 | 67 | 20 | 18 | 9.5 | 2 | 101 | 500 | 4.90 |
| SHM-10 | 10 | 13 | 76 | 22 | 20 | 10.5 | 2 | 139 | 700 | 6.86 |
| SHM-11 | 11 | 14 | 85 | 24 | 22 | 11.6 | 2 | 179 | 800 | 7.84 |
| SHM-13 | 13 | 16 | 96 | 27 | 25 | 14 | 2 | 286 | 1000 | 9.80 |
| SHM-16 | 16 | 18 | 118 | 34 | 30.5 | 19.4 | 2.5 | 572 | 1500 | 14.70 |
*Hex wrench used
*Both screw type

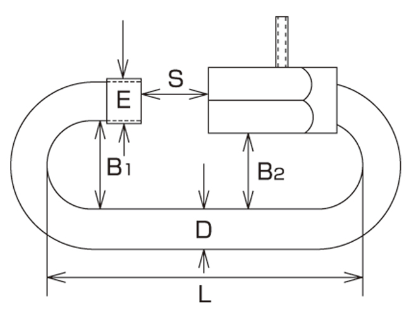

Dimensions (mm)
