Mizumoto Machine Mfg. Co.

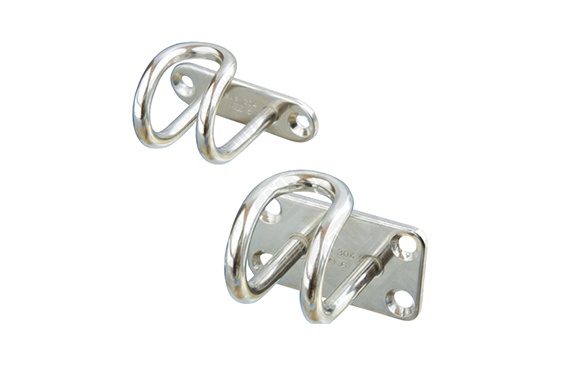

Mizumoto WPH Series Wire Plate Hook
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: WPH Series
Features
- The ends of the round bar forming the hook section are welded so that it can be used both temporarily and moored.
- It is installed on walls, floors, pillars, etc., and is used as terminal hardware for chains, wires, and ropes.
- Used as wall hardware for pet mooring.
- Used for temporary hanging of hoses, etc.
Specifications
| Model | D | L1 | L2 | W | A1 | A2 | B1 | B2 | d | T | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WPH-4 | 4 | 31.5 | 12 | 16.5 | 40 | 32 | 12 | – | 3.2 | 2 | 18 | 7 | 0.07 |
| WPH-5 | 5 | 41 | 13 | 20.5 | 50 | 40 | 15 | – | 4.2 | 2.5 | 35 | 10 | 0.10 |
| WPH-6 | 6 | 48 | 14 | 23 | 54 | 42 | 30 | 18 | 5.2 | 2.5 | 66 | 15 | 0.15 |
| WPH-8 | 8 | 64 | 20 | 30 | 72 | 57 | 40 | 25 | 5.2 | 3 | 155 | 25 | 0.25 |

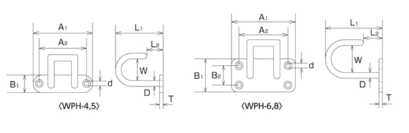

Dimensions (mm)
