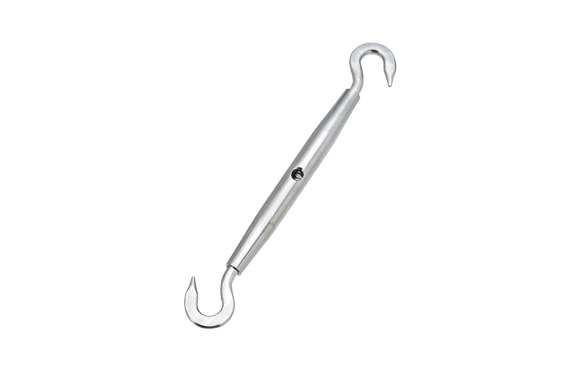

Mizumoto TBP-H Series Pipe Turnbuckle (Hook & Hook)
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: TBP-H Series
Features
- The frame can be rotated to loosen or tighten.
- Unlike the frame type, it is a pipe type and the screw part is not exposed, so it is more decorative. To adjust the tension of the wire rope.
Specifications
| Model | L | W | J | S | A | B | L1 | L2 | Thread Size | Weight (g) | Reference Working Load (kgf) | Reference Working Load (kN) |
| TBP-4H | 80 | 8 | 3 | 6 | 33 | 57 | 125 | 170 | W-3/16 | 28 | 40 | 0.39 |
| TBP-5H | 80 | 11 | 4 | 6 | 33 | 60 | 125 | 170 | W-3/16 | 33 | 50 | 0.49 |
| TBP-6H | 100 | 13 | 5 | 9 | 45 | 75 | 150 | 220 | W-1/4 | 75 | 80 | 0.78 |
| TBP-8H | 125 | 14 | 5.5 | 10 | 62 | 100 | 185 | 300 | W-5/16 | 143 | 120 | 1.18 |
| TBP-9H | 157 | 17 | 8 | 13 | 75 | 120 | 225 | 360 | W-3/8 | 236 | 160 | 1.57 |
| TBP-12H | 200 | 22 | 10 | 17 | 100 | 156 | 290 | 440 | W-1/2 | 480 | 400 | 3.92 |
| TBP-16H | 250 | 27 | 10 | 19 | 115 | 195 | 410 | 560 | W-5/8 | 980 | 600 | 5.88 |

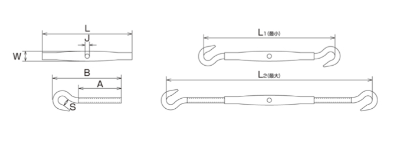

Dimensions (mm)
