Mizumoto Machine Mfg. Co.

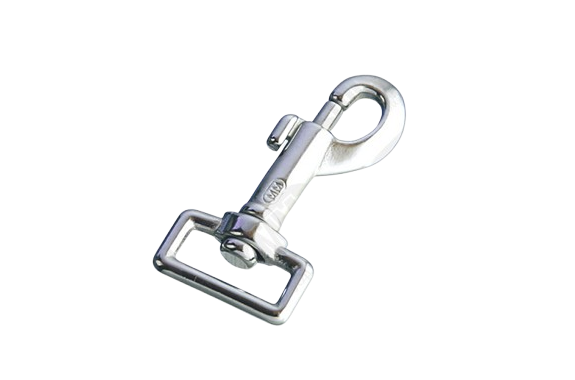

Mizumoto VN Series Swivel Belt Nascan
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: VN Series
Features
- There is a straight part on the eye part, which can be connected to a wide belt.
- As a connection bracelet with a belt-like flat object such as rubber or fiber, or as a joint for terminal fittings.
Specifications
| Product No. | D | L | W1 | W2 | S | H | t | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|
| VN-0 | 4 | 60 | 21 | 17 | 6 | 5 | 4 | 24 | 20 | 0.20 |
| VN-1 | 4 | 73 | 26 | 20 | 8 | 4 | 5 | 38 | 30 | 0.29 |
| VN-1L | 4 | 90 | 26 | 29 | 14 | 4 | 5 | 47 | 20 | 0.20 |

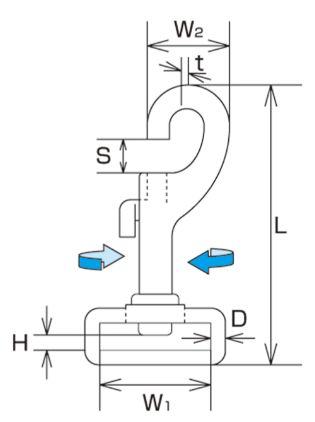

Dimensions (mm)
