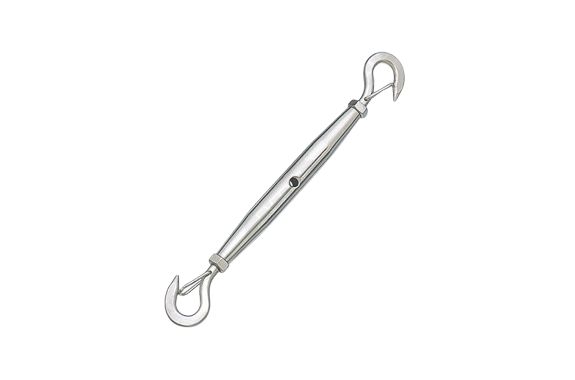

Mizumoto TBP-HK Series Pipe Turnbuckle with Release (Hook & Hook)
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: TBP-HK Series
Features
- The frame can be rotated to loosen or tighten.
- Unlike the frame type, it is a pipe type and the screw part is not exposed, so it is more decorative.
- To adjust the tension of the wire rope.
Specifications
| Model | L | W | J | A | B | R | L1 | L2 | Thread Size | Weight (g) | Reference Working Load (kgf) | Reference Working Load (kN) |
| TBP-6HK | 100 | 13 | 5 | 48 | 81 | 2.5 | 170 | 233 | W-1/4 | 81 | 80 | 0.78 |
| TBP-8HK | 129 | 14 | 6 | 65 | 105 | 2.5 | 219 | 299 | W-5/16 | 141 | 120 | 1.18 |
| TBP-9HK | 157 | 17 | 8 | 81.5 | 130 | 4 | 256 | 362 | W-3/8 | 260 | 160 | 1.57 |
| TBP-12HK | 200 | 22 | 10 | 100 | 166 | 6 | 330 | 470 | W-1/2 | 523 | 400 | 3.92 |

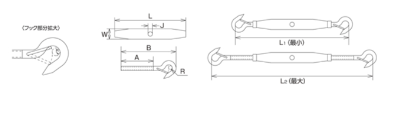

Dimensions (mm)
